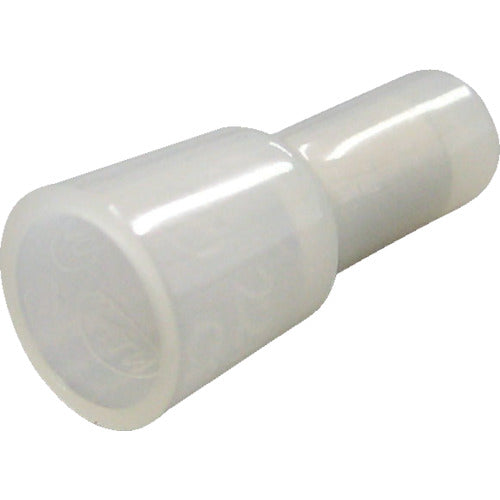

Nichifu Insulated Closed End Connector CE Type (100 Pieces) CE-1 1 Bag

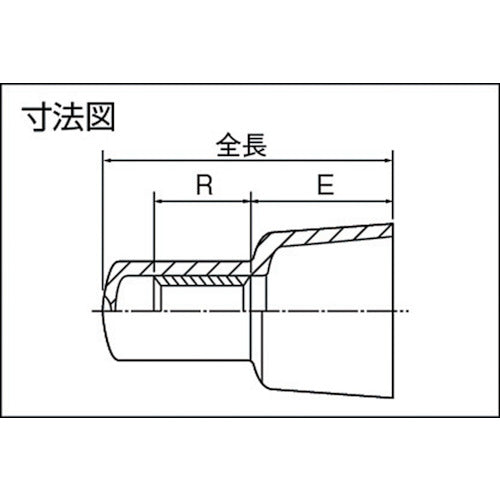

Catalog number: CE-1 Features: ●One side of the insulating coating is closed. ●Complies with the RoHS directive. Applications: ●For connecting multiple wires by overlapping them in wiring inside equipment. Specifications: ●Wire clamping range Stranded wire (mm2): 0.5 to 1.75 ●Wire clamping range AWG: 22-16 ●Rated current (A): 7 ●Total length (mm): 18.0 ●R (mm): 6.2 ●E (mm): 8.8 ●Inner diameter (mm): 6.5 ●Compatible tools: Closed-end connector tool ●JIS C2807 standard product ●Rated voltage: 300V ●Color: Milky white Material/Finish: ●Connector: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: Nylon
