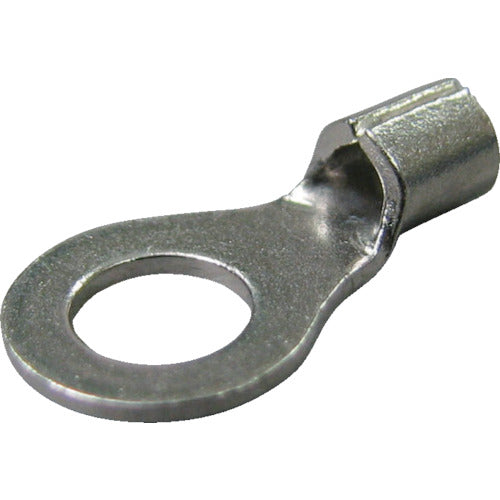

Nichifu Heat resistant terminal (R type) (100 pieces) N 1.25-3 1 PK

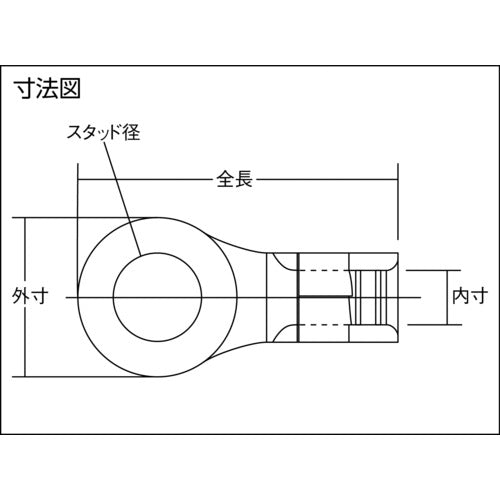

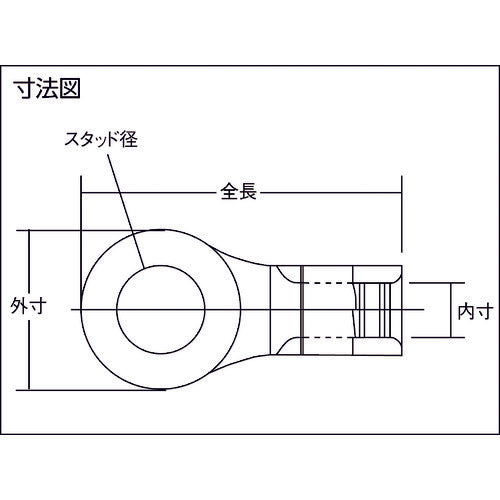

Catalog number: N 1.25-3 Features: ●Heat-resistant nickel material. ●Bare crimp terminal with rounded contact surface (tongue) and mounting hole for screw fixing. ●For use with nichrome and nickel wires only. Applications: ●For connecting heater wires and electric heating wires. Specifications: ● Wire clamping range Solid wire (mm): 0.6-1.4 ● External diameter (mm): 5.5 ● Stud diameter (mm): 3.2 ● Total length (mm): 12 ● Internal dimension (mm): 1.7 ● Wire clamping range Nichrome/nickel solid wire (mm): 0.6-1.4 ● Wire clamping range Nickel stranded wire (mm2): 0.5-1.25 ● JIS standard product: × ● Color: Silver ● Wire clamping range Nickel stranded wire (mm2): 0.5-1.25 ● Number of pieces per pack: 100 ● Wire clamping range Nichrome/nickel solid wire (mm): 0.6-1.4 ● Round shape ● Heat resistance: 400℃ MAX ● Suitable tools: Tools for bare crimp terminals and sleeves ● Compliant with ROHS directive standards Material/Finish: ● Nickel material Note: * The wire conjugation range is for single wires, both solid and stranded. * Please use the applicable crimping tool specified by our company. * The applicable tool is also used for crimping terminals for copper wires, so durability will be reduced if heat-resistant terminals are used.
