(株)ニチフ

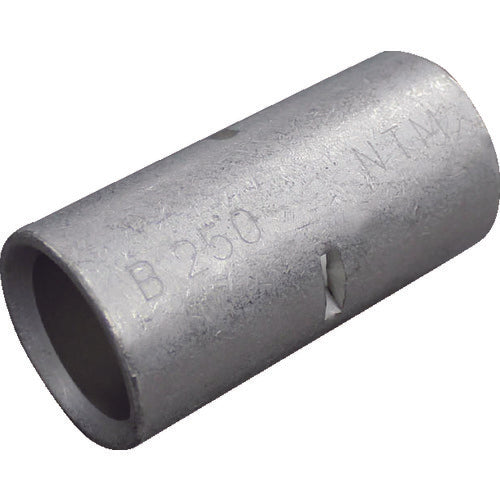

Nichifu bare crimp sleeve B type (5 pieces) B 250 1 box
Nichifu bare crimp sleeve B type (5 pieces) B 250 1 box
Regular price
¥12,228
Regular price
Sale price
¥12,228
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: B 250 Features: ● Connects wires by butting them together inside the sleeve. Applications: ● For connecting stranded soft steel wires. Specifications: ● Wire clamping range (stranded wire (mm2): 250 ● Total length (mm): 72.0 ● Inner dimensions (mm): 26.5 ● JIS standard product: ○ ● Compatible tools: Tools for bare crimp terminals and sleeves ● External dimensions (mm): 35.0 ● Type B ● Compliant with ROHS Directive standards Material/Finish: ● Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ● For copper wire only. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
View full details
