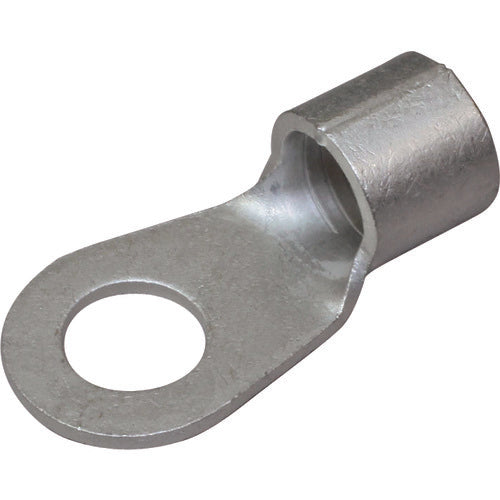

Nichifu bare crimp terminal R type (20P) R 100-16 1PK

Catalogue number: R 100-16 Features: ● Bare crimp terminal with rounded contact surface (tongue) and mounting hole for screw fixing. Applications: ● For connecting stranded soft steel wires. Specifications: ● Wire clamping range Stranded wire (mm2): 96.3-117.2 ● Wire clamping range AWG: 4/0 ● Stud diameter (mm): 17.0 ● Total length (mm): 62.5 ● Inner dimension (mm): 16.4 ● Color: Silver ● Outer dimension (mm): 32.0 Material/Finish: ● Oxygen-free copper (C1020) ● Electrolytic tin plating Caution: ● For copper wire only. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
