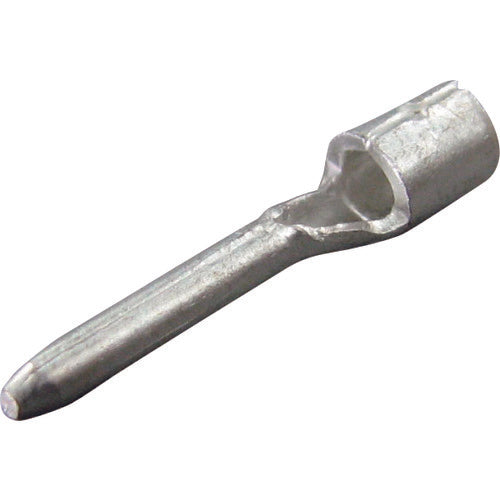

Nichifu Bare crimp terminal TC type (100P) TC 1.25-11V-ST 1 PK

Catalog number: TC 1.25-11V-ST Features: ●Center pin type Terminal with the contact part (rod part) and crimp part (tube part) in the center of the terminal. Applications: ●For connecting soft steel stranded wire or solid wire. Specifications: ●Wire clamping range Solid wire (mm): 0.57-1.44 ●Wire clamping range Stranded wire (mm2): 0.25-1.65 ●Wire clamping range AWG: 22-16 ●Stud diameter (mm): 1.9 ●Total length (mm): 19.5 ●Inner dimension (mm): 1.7 ●F (mm): 11 ●Color: Silver ●Rod dimension (mm): 11.0 ●Rod diameter (φ): 1.9 Material/Finish: ●Oxygen-free copper (C1020) ●Electrolytic tin plating Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by our company.
