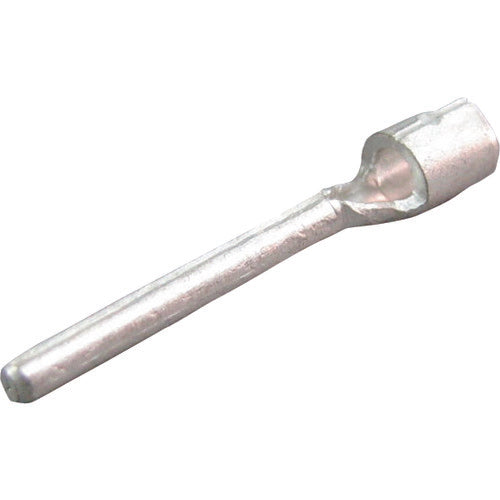

Nichifu Bare crimp terminal TC type (100P) TC 2-16V-ST 1 PK

Catalog number: TC 2-16V-ST Features: ●Center pin type A terminal in which the contact part (rod part) and the crimping part (tube part) are located in the center of the terminal. Applications: ●For connecting soft steel stranded wire or solid wire. Specifications: ●Wire clamping range Solid wire (mm): 1.14-1.82 ●Wire clamping range Stranded wire (mm2): 1.04-2.63 ●Wire clamping range AWG: 16-14 ●Stud diameter (mm): 1.9 ●Total length (mm): 24.5 ●Inner dimension (mm): 2.3 ●F (mm): 16 ●Color: Silver ●Rod dimension (mm): 16.0 ●Rod diameter (φ): 1.9 Material/Finish: ●Oxygen-free copper (C1020) ●Electrolytic tin plating Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by our company.
