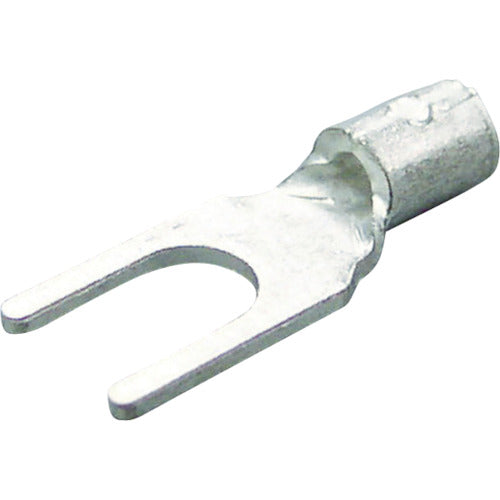

Nichifu bare crimp terminal Y type (100P) stranded wire 0.25-1.65 outer dimensions 5.6 1.25Y-3.5K 1 PK

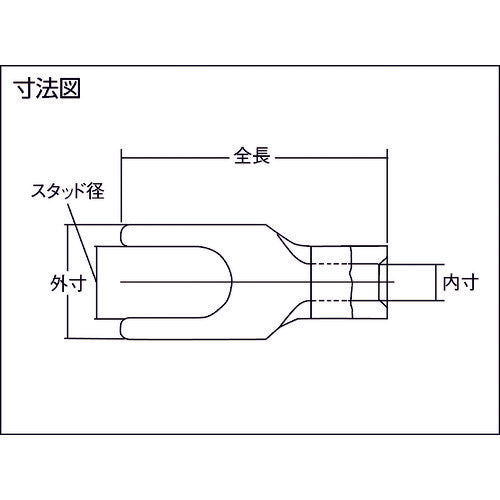

Catalog number: 1.25Y-3.5K Features: ●One side of the mounting hole on the contact surface (tongue) is open, so it can be installed without completely removing the screw. Applications: ●For connecting soft steel stranded wire or solid wire. Specifications: ●Wire clamping range Solid wire (mm): 0.57-1.44 ●Wire clamping range Stranded wire (mm2): 0.25-1.65 ●Wire clamping range AWG: 22-16 ●External diameter (mm): 5.6 ●Stud diameter (mm): 3.7 ●Total length (mm): 15.0 ●Inner dimension (mm): 1.7 ●JIS standard product: × ●Color: Silver ●External dimensions (mm): 5.6 ●Y-shaped, single wire compatible type Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ●For copper wire only. ●Use within the wire clamping range. ●Please use the applicable crimping tool that complies with JIS standards or is specified by our company.
