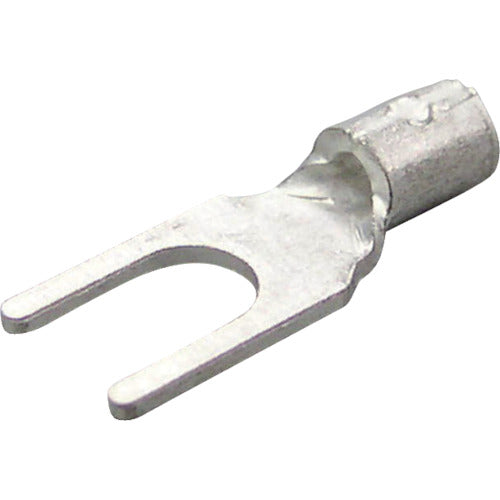

Nichifu bare crimp terminal Y type (100P) stranded wire 0.2 to 0.5 External dimensions 5.2 0.3Y-2 1 PK

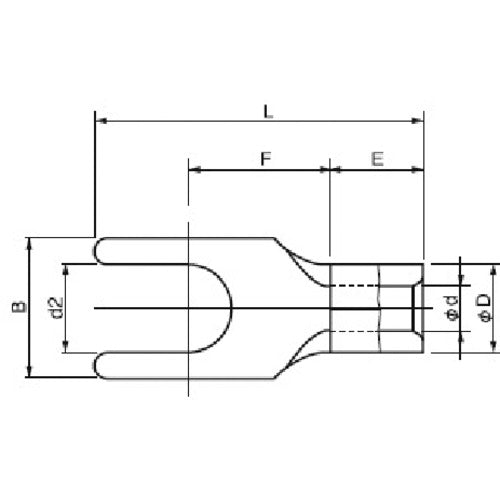

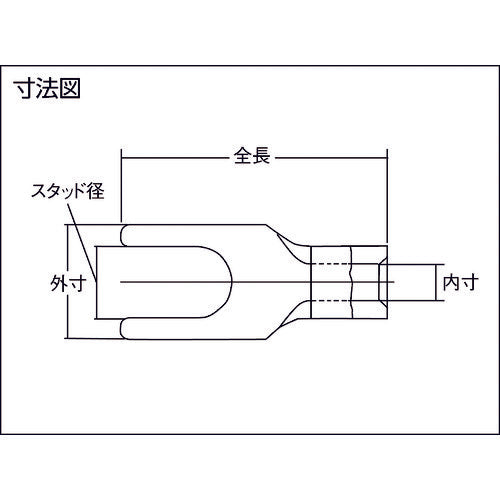

Catalog number: 0.3Y-2 Features: ●One side of the mounting hole on the contact surface (tongue) is open, so this bare crimp terminal can be installed without completely removing the screw. Applications: ●For connecting stranded wires of soft steel. Specifications: ●Wire clamping range Stranded wire (mm2): 0.2-0.5 ●Wire clamping range AWG: 24-20 ●External dimension (mm): 5.2 ●Stud diameter (mm): 2.2 ●Total length (mm): 12.0 ●Inner dimension (mm): 1 ●JIS standard product: × ●Color: Silver ●External dimension (mm): 5.2 ●Y-shaped Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by JIS or our company.
