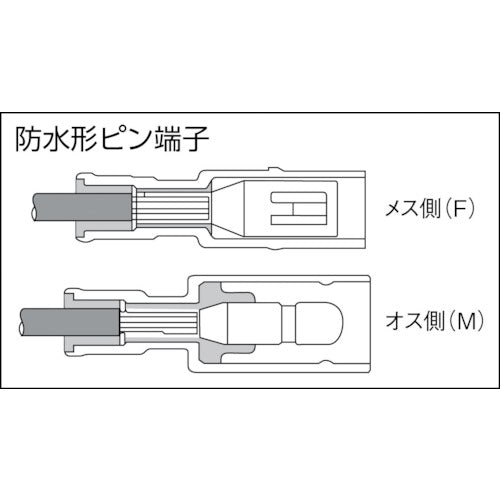

Catalog number: PC4020-M-WP Features: ●Waterproof cap keeps out water. ●Waterproof performance: Waterproof safety code IP57. (IEC529) Applications: ●Combination (fitting) of male side (M) and female side (F) allows for wire connection and relay within equipment, and where waterproof performance is required. Specifications: ●Wire clamping range Stranded wire (［［MM2］］): 2.00 ●Wire clamping range AWG: 14 ●Color: Blue ●Shape: Male ●Outer diameter (mm): 7.4 ●Total length (mm): 27.7 ●Inner dimension (mm): 3.9 ●F (mm): 16.5 ●Rated voltage (V): 300 ●Compatible tool: NH-64 (Nichifu special tool) ●Maximum operating temperature: 105℃ Material/Finish: ●Insulator: Nylon Caution: ●Be sure to use the special tool NH-64.
