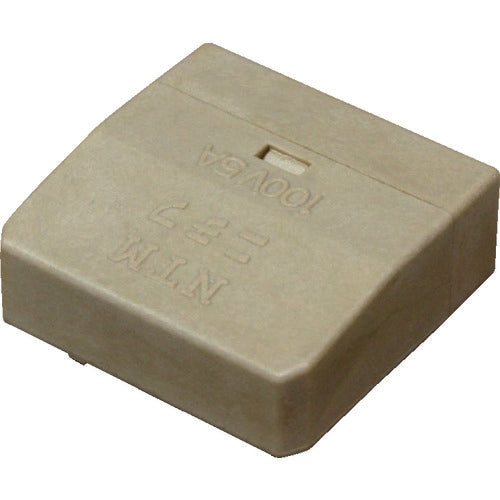

Nichifu Disaster Prevention Heat Resistant Plug-in Connector, 4 poles (30 pieces) QLX SQ-4 1 PK

Catalog number: QLX SQ-4 Features: ● Unique two-point contact spring structure. ● No need for the troublesome taping or crimping work of conventional methods. ● Passed the heat resistance test that reaches 380°C after 15 minutes as stipulated in Fire and Disaster Management Agency Notification No. 11. ● Listed in the Fire Alarm Manufacturers Association Construction Standards (2017 edition) Applications: ● For connecting stripped wires together. Specifications: ● Number of poles: 4 ● Color: Beige ● Rated current: 5A ● Length (mm): 15 ● Rated current (A): 5 ● Compatible wire ([MM2]) Stranded wire: Not compatible with twisted wire ● Compatible wire (mm) φ Solid wire: φ0.9-1.2 ● Width (mm): 15.4 ● Height (mm): 5.8 ● Rated voltage (V): 100 ● Compatible wire (mm) Solid wire: φ0.9-1.2 ● Rated voltage: 100V ● Maximum operating temperature: 80℃ ● Heat resistance: 380℃/15 minutes ● Disaster prevention heat resistant type ● Fire alarm industry association construction standard manual (2016 edition) Material/Finish: ● Contact: Copper alloy ● Molded product: Liquid crystal polymer Caution: ● Strip the wire coating according to the strip gauge. ● Straighten bent wires before use. ● Insert the wire until it hits the end. Once connected, the wire cannot be removed and the connector cannot be reconnected.
