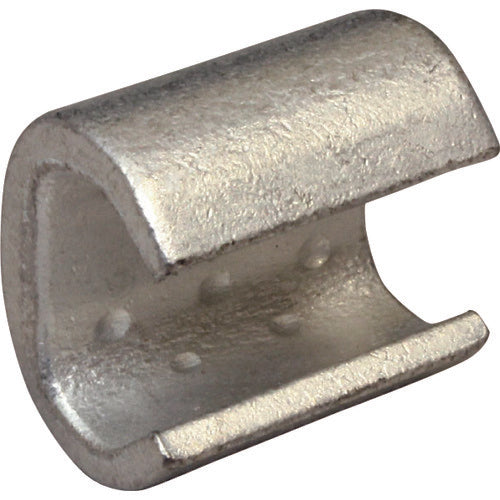

Nichifu T-shaped connector for branch connection (20 pieces) T 365 1 box

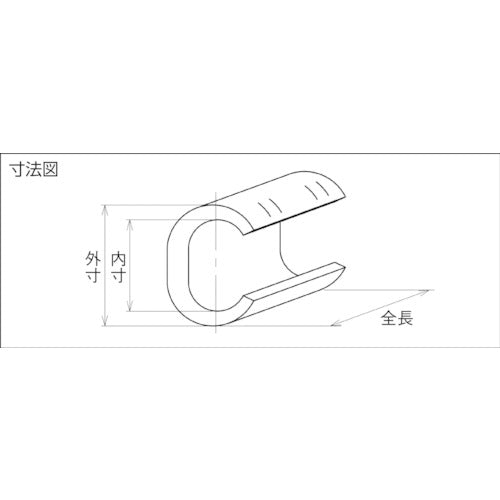

Catalog number: T 365 Features: ●Dimples and serrations are applied to the inside of the connector to increase connection reliability. ●Beveled inner and outer surfaces to prevent damage to the wire. ●Compression position is engraved. Applications: ●For branch connection of soft copper stranded wire. Specifications: ●Wire clamping range Stranded wire (mm2): 289-365 ●Color: Silver ●Total length (mm): 50.0 ●Inner dimension (mm): 37.0 ●Outer dimension (mm): 47.5 ●RoHS 10 substance compliant Material/Finish: ●Oxygen-free copper (tin plated) Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by our company.
