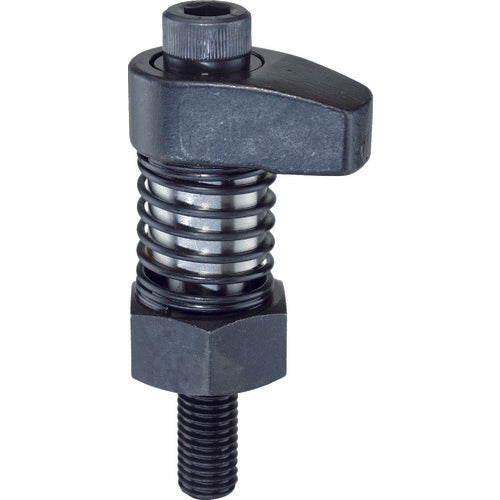

NEW STRONG Hook Clamp (D Type) HCD-1 1 pc

Catalog number: HCD-1 Features: ● Built-in spring improves clamping efficiency. Applications: ● For clamping NC machines, etc. Specifications: ● Width (mm): 29 ● Height (mm): 40 ● Bolt diameter (mm): M12 ● Stroke (mm): 30 ● Bolt diameter: M12 ● Clamp tip width (mm): 16 ● Clamping jig Material/Finish: ● Body: Steel (S45C) ● Body treatment: Black dye finish ● Cap bolt: Steel (SCM440) ● Cap bolt treatment: Hardened (HRC38-42) Set contents/Accessories: ● Single item Caution: ● Please check the stroke dimensions.
