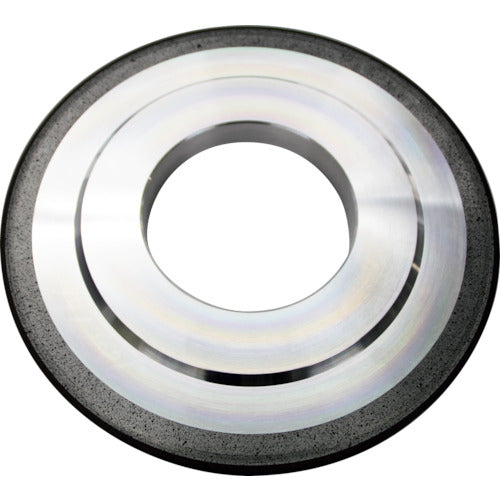

Noritake Mold Master Diamond SDC170 350X32(U20)X127 1A0DPROM35020 1 piece

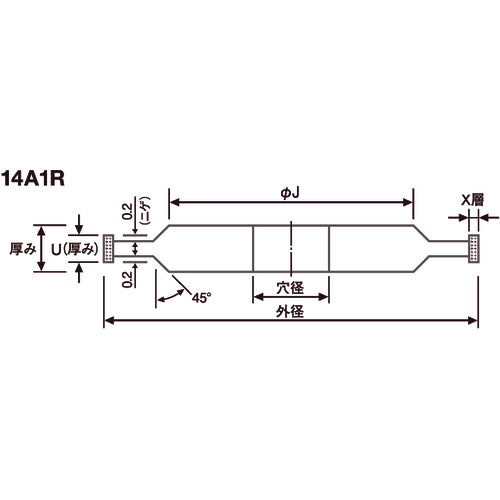

Catalog number: 1A0DPROM35020 Features: ● Diamond resin wheel for surface grinding and cylindrical grinding. ● High grain retention provides stable sharpness. ● High elasticity bond reduces grain sinking and provides excellent sharpness. ● Simultaneous grinding of carbide and steel is also possible. Applications: ● For polishing carbide alloys and non-ferrous materials (ceramics, glass, etc.). Specifications: ● Grain size (#): 170 ● Abrasive: SDC ● Outer diameter (mm): 350 ● Thickness (mm): 32 (U20) ● Hole diameter (mm): 127 ● Grinding wheel peripheral speed (m/s): 50 ● Made to order ● For grinding machines ● Idas: 14A1R ● Concentration: 75 ● Bonding material: B ● X layer (mm): 3 ● ΦJ (mm): 240 Caution: ● Diamond tools are safe tools if used correctly. However, incorrect use or careless handling of the machine can lead to damage to the diamond tool. ●Please be sure to read the instruction manual before use, and for safety reasons, always install the machine cover when using it, and wear a helmet, protective glasses, and safety shoes when working. Wear a mask if dust is generated.
