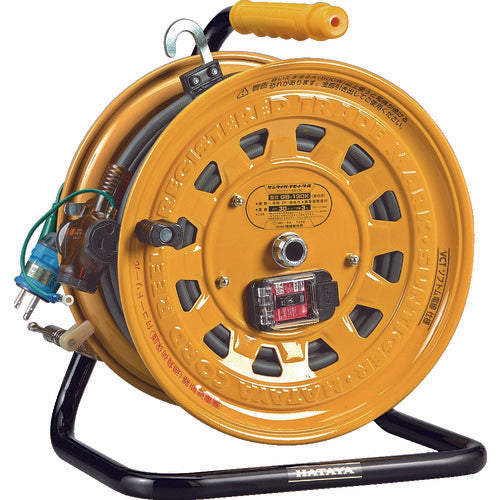

Hataya Reverse Power Distribution Type Breaker Cord Reel Santaiger Temotor Reel Single Phase 100V Earthed 30+3m GB-130K 1 Unit

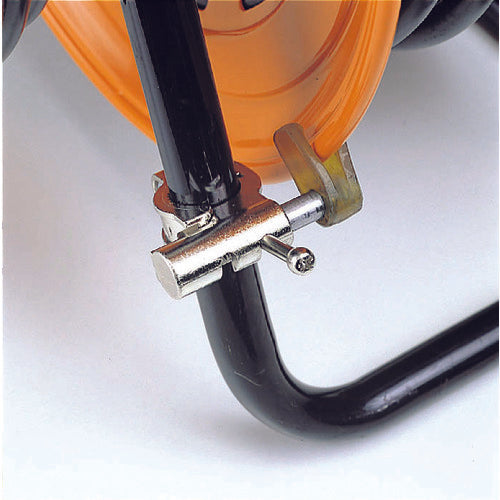

Catalog number: GB-130K Features: ●This type allows you to place the reel next to the power source and pull out only the outlet. ●With a temperature sensor to prevent wire melting and burning: If the wire is used for a long time while wound up or if it is used beyond the rated current, it will detect an abnormal rise in temperature and stop power supply to the outlet. ●Rotating dust cap: Turn the cap to prevent oil and dust from entering, which can cause fires (ignition) and breakdowns. ●Brake stopper: Clip type that is clamped to the disk. ●With hook: Prevents the cable from falling. ●Frame: Can be used with the main unit standing upright or lying face down. Applications: ●For power sources for various 100V equipment at production plants and events. Specifications: ● Wire type: VCT soft cable ● Wire specification length (m): 30+3 ● Wire specification thickness (［［mm2］］): 2 ● Wire specification number of cores (C): 3 ● Rated current (A): 5 ● Outlet specification rating: 2P, 15A, 125V with earth ● Outlet specification shape: ［［three-phase 1］］ ● Number of outlet specifications: 3 ● Temperature sensor: ○ ● Power lamp: ○ ● Ground terminal: ○ ● 2P/3P compatible plug: ○ ● Earth leakage breaker specification: Also serves as earth leakage, overload, and short circuit protection ● Pilot lamp: ○ ● Specifications with breaker ● AC100V ● Primary line comes with 3m cable ● Also serves as earth leakage, overload, and short circuit protection
