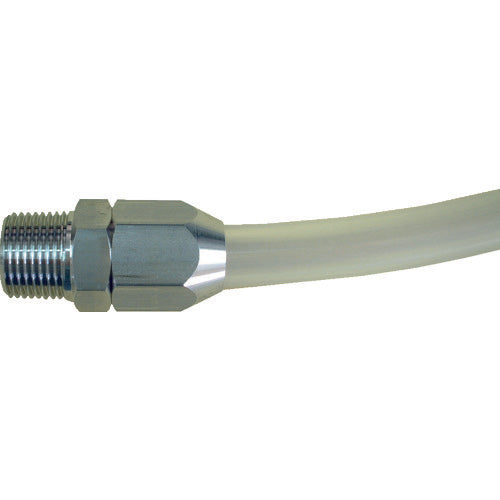

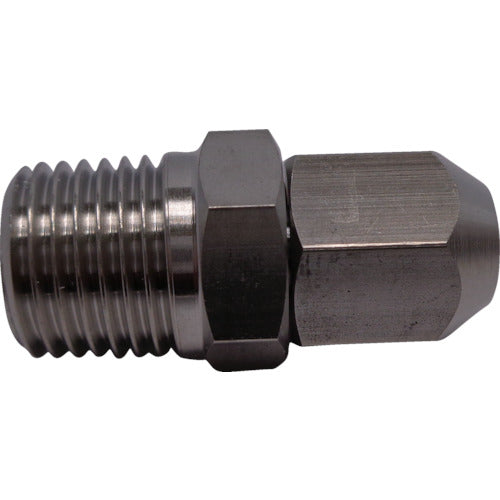

Hakko Hose Fitting for 3φ FTS-3 1 pc

Catalog number: FTS-3 Features: ●The main body is made of SUS316L, so it has excellent corrosion resistance and can be used with fluids for a wide range of applications. ●Designed to match the dimensions of HAKKO hoses. ●The appropriate nipple outer diameter ensures that the hose's performance is fully utilized. Applications: ●A joint exclusively for HAKKO flexible fluorine tubes. ●Multipurpose piping for printing machines, food machines, scientific experiments, etc. Specifications: ●Thread size: R1/4 ●Compatible tube outer diameter (mm): 5 ●Compatible tube inner diameter (mm): 3 ●Thread size: R1/4 ●Fluid used: air, water ●Applicable hose: SJ-3 ●Compatible fluids: seawater, methyl chloride, cresol ●Compatible tube outer diameter (mm): 3 ●Compatible tube inner diameter (mm): 5 ●Fluid temperature: 0 to 70°C ●Operating pressure: 1MPa Materials/Finish: ●Main body: Stainless steel (SUS316L) ●Nut: Stainless steel (SUS304)
