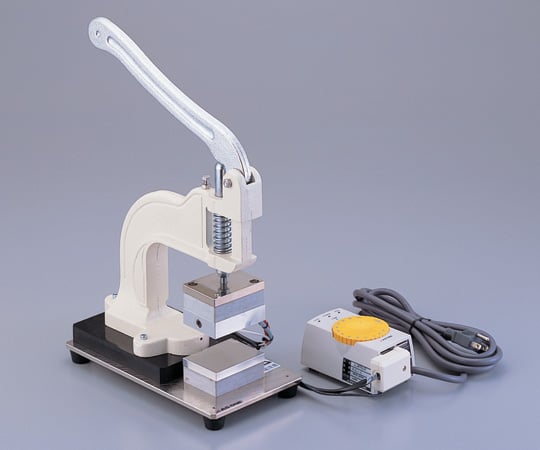

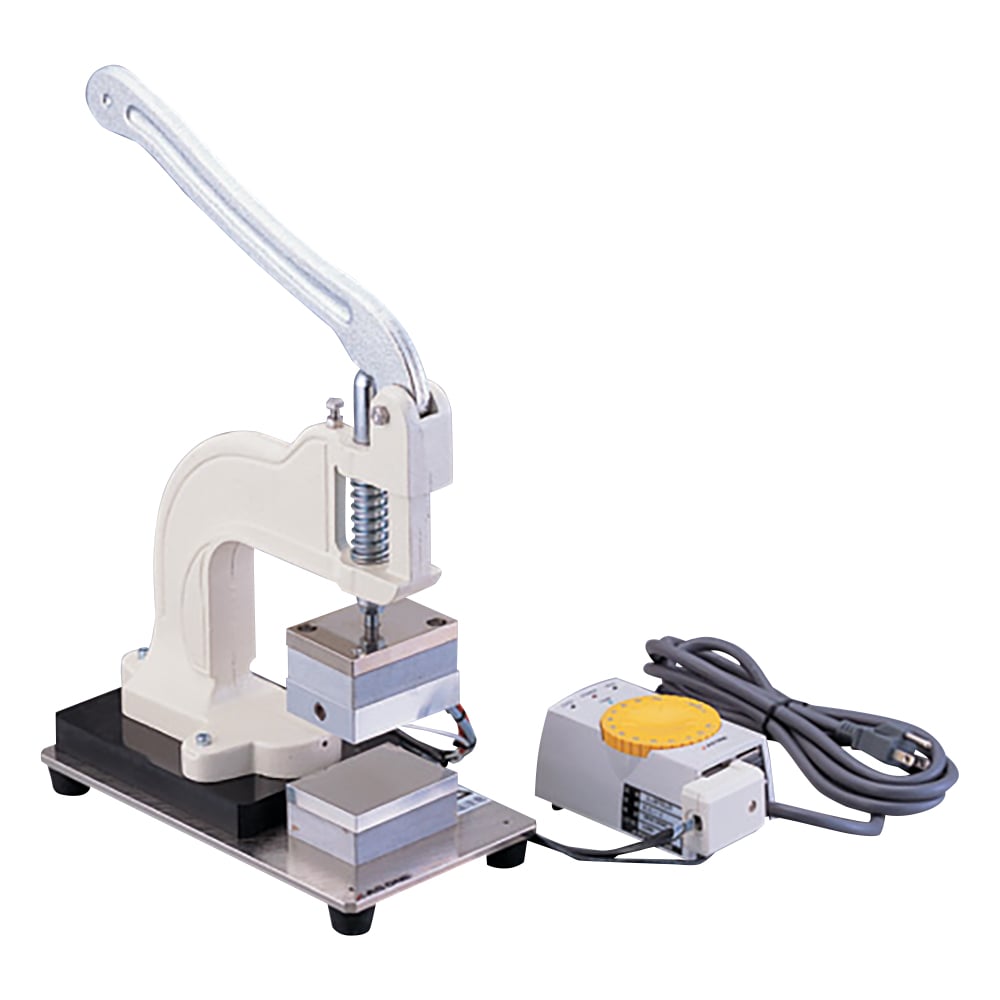

For heat pressing small amounts of samples.
Suitable for heat pressing small amounts of samples, about the size of a tablet.
Temperature settings can be input via analog input.
You can use the separately sold mold (φ7 to φ14). Size: 150 x 280 x 443 mm
Weight (kg): Approx. 11
Distance between upper and lower heat plates: 38-63mm (stroke: 25mm)
Weight: Maximum 40kg
Heating temperature: room temperature +20~200℃
Temperature setting: Analog
Sensor: K thermocouple
Material: Press body: cast iron baked paint, Lever: cast iron (chrome plated), Temperature control part: steel paint, Base: phenolic resin, Top plate: aluminum
Heater: 160W x 1
Power supply: AC100V 50/60Hz
Power cord length: 2.5m
*The upper and lower heat plates do not come into contact with each other.

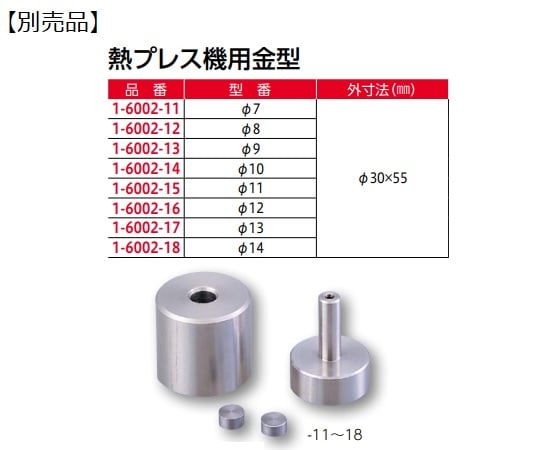

*Please use with the mold sold separately.
