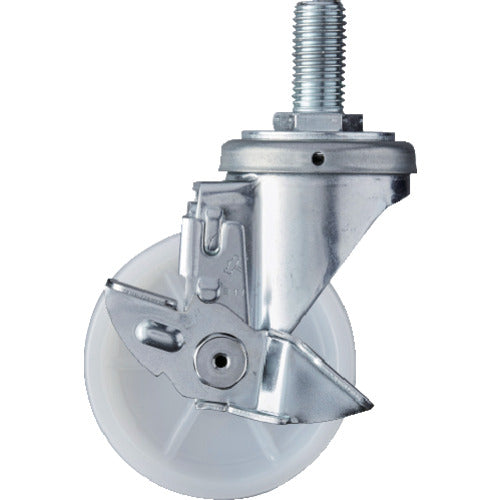

Hammer Screw-in SP with nylon wheel 413SA-N100 1 piece

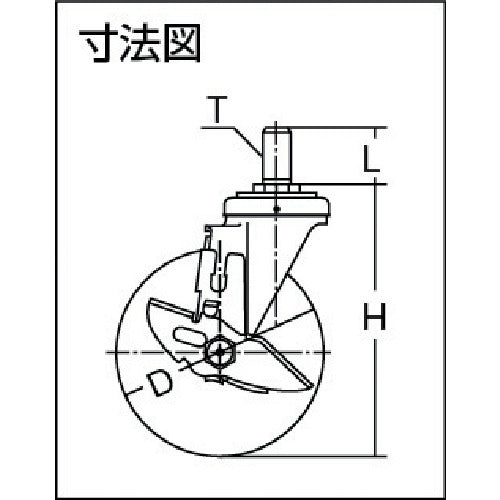

Catalog number: 413SA-N100 Features: ●High resistance to loads and smooth rotation. ●RoHS compliant. ●Robust screw-in caster for heavy loads with steel balls built in two tiers, top and bottom. Applications: ●All-purpose caster for medium to heavy loads. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel (with stopper) ●Allowable load (daN): 120 ●Allowable load (kgf): 122.4 ●Wheel width (mm): 32 ●Mounting height H (mm): 138 ●Axle length L (mm): 40 ●Thread T: M20 ●Thread pitch (mm): 2.5 ●Thread-in type ●Swivel type (with stopper) ●Millimeter thread type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium chemical conversion treatment ●Wheels: Nylon
