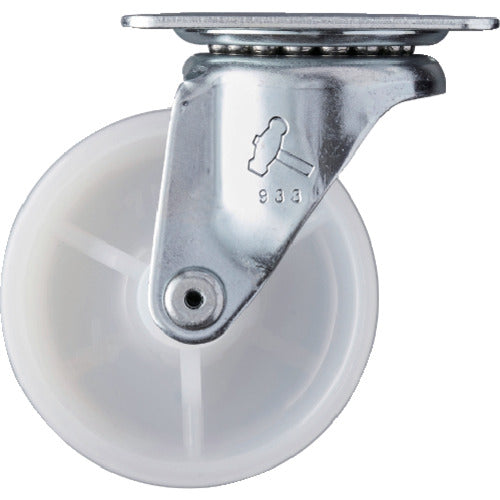

Hammer Caster Swivel Nylon Wheel 75mm 420G-N75 1pc

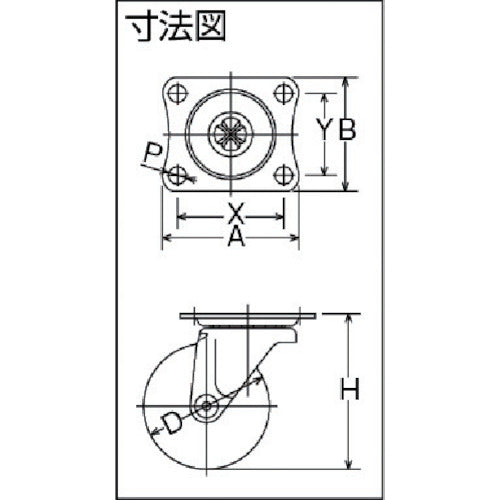

Catalogue number: 420G-N75 Features: ●The most widely produced and used in a variety of locations. ●Complies with RoHS. Applications: ●An all-purpose lightweight type that can be used both indoors and outdoors. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel ●Allowable load (daN): 65 ●Allowable load (kgf): 66.3 ●Wheel width (mm): 25 ●Mounting height H (mm): 90 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 650 ●Plate type ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Nylon
