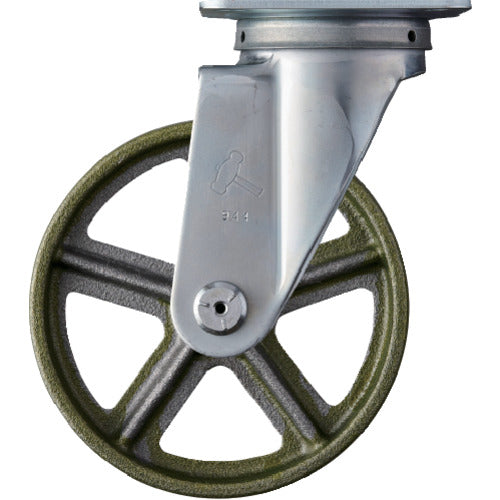

Hammer Caster 420S-C150 1 piece

Catalog number: 420S-C150 Features: ●A high-quality large caster with high resistance to loads and smooth rotation. ●Widely used in factories and offices, it is robust and stable, making it ideal for transporting heavy objects. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-moving ● Allowable load (daN): 160 ● Allowable load (kgf): 163.2 ● Wheel width (mm): 35 ● Mounting height H (mm): 190 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Mounting dimensions (mm): 75 x 75 (80 x 80) ● Mounting hole diameter (mm): 11 ● Mounting seat (mm): 102 x 102 ● Mounting height (mm): 190 ● Plate type Material/Finish: ● Body: Steel ● Surface treatment: Trivalent chromate chemical treatment ● Wheels: Cast iron
