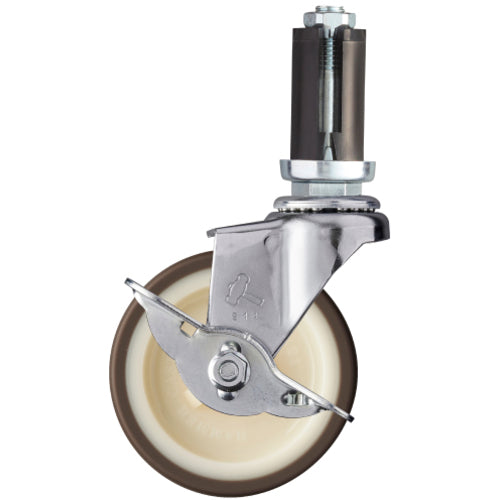

Hammer Pipe Insert Caster Pipe Insert Caster Swivel (with stopper) Wheel diameter 75mm Urethane wheel (nylon wheel) For φ22-24 4153EU-UR75 1 piece
Hammer Pipe Insert Caster Pipe Insert Caster Swivel (with stopper) Wheel diameter 75mm Urethane wheel (nylon wheel) For φ22-24 4153EU-UR75 1 piece
Regular price
¥1,152
Regular price
Sale price
¥1,152
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: 4153EU-UR75 Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 50 ● Wheel width (mm): 21 ● Mounting height H (mm): 95 ● Shaft length L (mm): 53 ● Mounting pipe outer diameter T (mm): 22^24 ● Eccentricity (E) (mm): 29 ● Turning radius (mm): 68 ● Wheel type: 439E-UR ● Spanner used (mm): 19 ● Pipe insertion type Material/Finish: ● Metal fittings: Steel ● Wheels: Urethane
