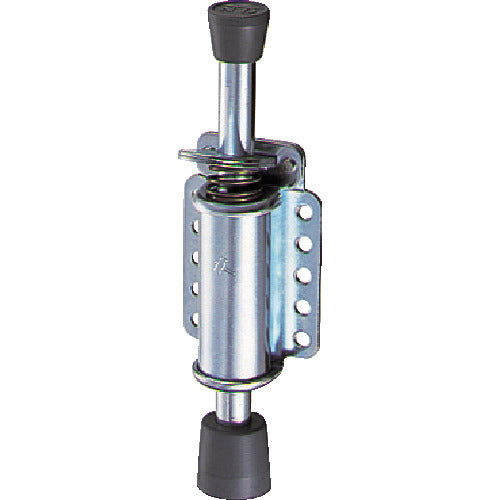

Hammer Freelock 900-A 900-A-220 1 pc

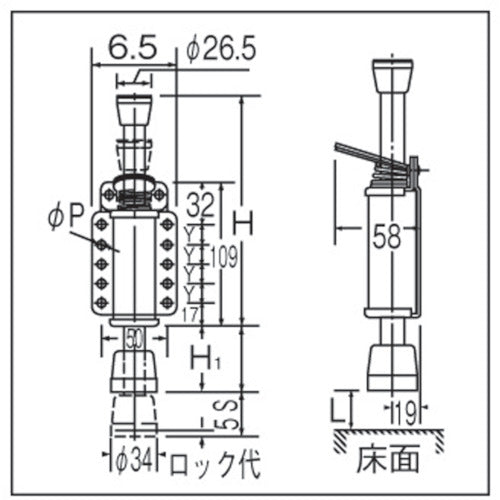

Catalog number: 900-A-220 Features: ●A new type of floor lock that can be attached to the side. ●It can be locked securely even if the floor surface is slightly uneven. ●It can be locked at any position within the effective dimension range (30 mm). ●It is small and lightweight, so it can be used for a wide range of applications. ●It is RoHS compliant. Applications: ●From carts to equipment that require one-touch locking and unlocking. Specifications: ●Stroke (mm): 38 ●Mounting pitch (mm): 15 ●Total length (mm): 223 ●Dimension from floor surface (mm): 25-30 ●Mounting hole diameter (mm): 7 ●Total height (mm): 25-30 ●Side mounting type Material/Finish: ●Steel Caution: ●Never use as a jack. ●It is ideal to install the floor surface and base rubber with a gap of about 25-30 mm when unlocked. There are five mounting holes on each side, so select the appropriate holes and install them with 6 mm diameter bolts, screws, etc.
