Hammer Plate-type caster Plate-type caster "420J series" (pressed rubber wheels) Fixed Wheel diameter 150 mm 420JR-RBB150 1 pc

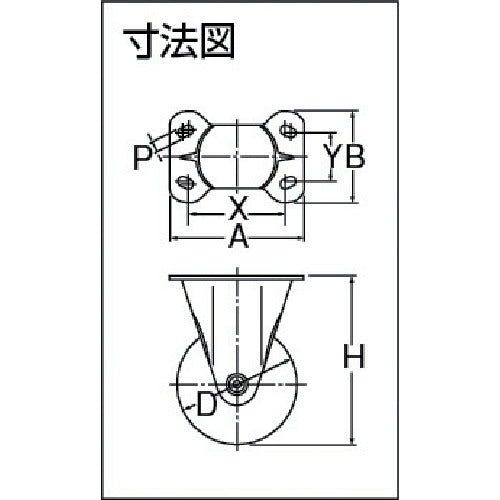

Catalog number: 420JR-RBB150 Features: ● Equipped with radial ball bearings, it rotates easily and has very strong resistance to loads. Applications: ● An all-purpose caster for medium to heavy loads. Specifications: ● Wheel diameter D (mm): 150 ● Type: Fixed type ● Allowable load (daN): 220 ● Allowable load (kgf): 224.4 ● Wheel width (mm): 40 ● Mounting height H (mm): 199 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 94 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 56-50 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 2200 ● Plate type ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Steel wheels, rubber (with radial ball bearings)
