Hammer Plate-type Corner Caster Swivel Rubber Wheel 100mm with Stopper 215E-R100 1 pc

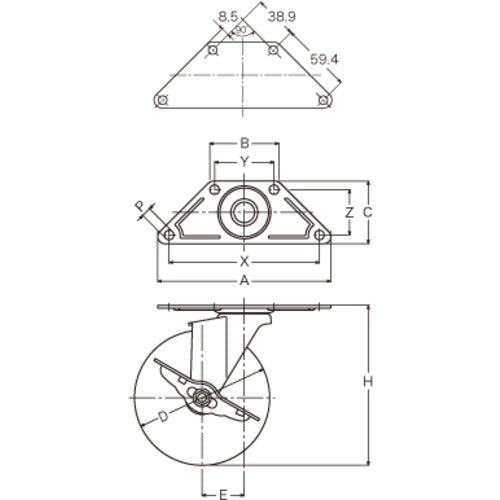

Catalog number: 215E-R100 Features: ●A corner caster that can be attached to angle frames, etc., even without a mounting base. ●E series corner type rubber wheel with swivel SP. Applications: ●For steel racks, lightweight machinery, etc. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-moving (with stopper) ● Allowable load (daN): 50 ● Allowable load (kgf): 51 ● Wheel width (mm): 27 ● Mounting height H (mm): 122 ● Mounting seat A (mm): 160 ● Mounting seat B (mm): 63 ● Mounting pitch X (mm): 139 ● Mounting pitch Y (mm): 55 ● Mounting hole diameter P (mm): 8.8 ● Mounting seat C (mm): 58 ● Mounting pitch Z (mm): 42 ● Eccentricity E (mm): 32 ● Turning radius (mm): 83 ● Plate type ● Wheel fixing method: Nut Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Chrome plated finish ● Wheels: Rubber
