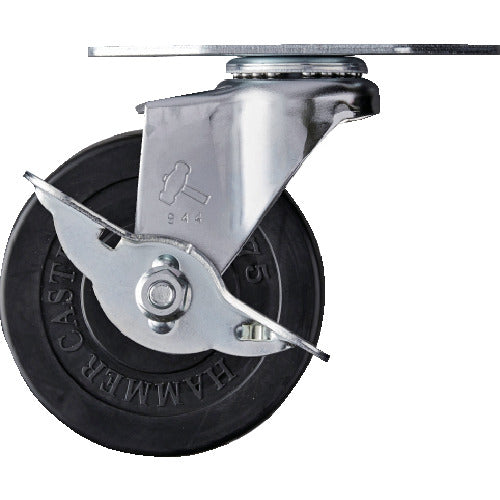

Hammer Plate-type Corner Caster Swivel Rubber Wheel 75mm with Stopper 215E-R75 1pc

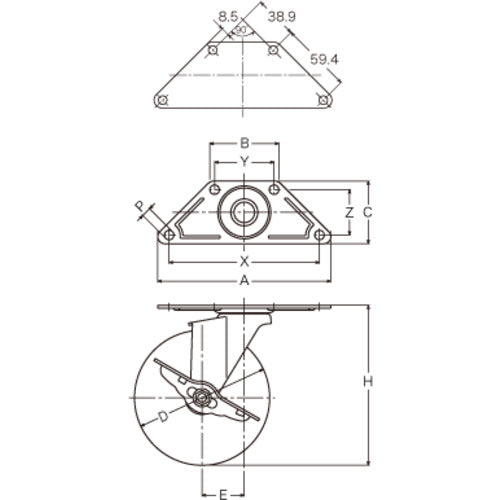

Catalogue number: 215E-R75 Features: ●A corner caster that can be attached to angle frames, etc., even without a mounting base. ●E-series corner type rubber wheel with swivel SP. Applications: ●For steel racks and lightweight machinery, etc. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel (with stopper) ●Allowable load (daN): 40 ●Allowable load (kgf): 40.8 ●Wheel width (mm): 21 ●Mounting height H (mm): 93 ●Mounting seat A (mm): 94 ●Mounting seat B (mm): 45 ●Mounting pitch X (mm): 80 ●Mounting pitch Y (mm): 40 ●Mounting hole diameter P (mm): 5.2 ●Mounting seat C (mm): 34 ●Mounting pitch Z (mm): 20 ●Eccentricity E (mm): 29 ●Turning radius (mm): 68 ●Plate type ●Wheel fixing method: Nut Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Chrome plated finish ●Wheels: Rubber
