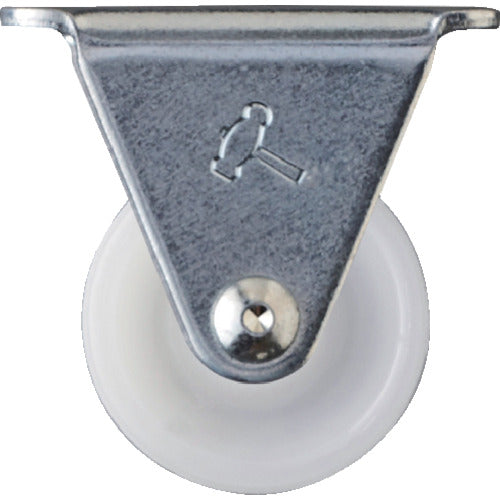

Hammer Fixed Nylon Wheel 25mm 420R-N25 1pc

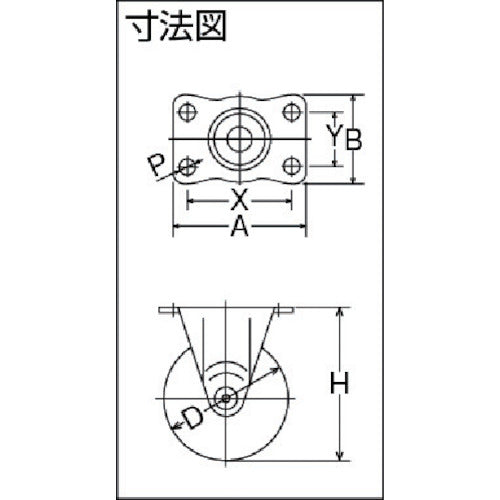

Catalog number: 420R-N25 Features: ●The most widely produced and used in a variety of locations. ●Complies with RoHS. Applications: ●A versatile lightweight type that can be used both indoors and outdoors. Specifications: ●Wheel diameter D (mm): 25 ●Type: Fixed type ●Allowable load (daN): 10 ●Allowable load (kgf): 10.2 ●Wheel width (mm): 12 ●Mounting height H (mm): 35 ●Mounting seat A (mm): 37 ●Mounting seat B (mm): 18 ●Mounting pitch X (mm): 29 (2 holes) ●Mounting hole diameter P (mm): 4.2 ●Allowable load (N): 100 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium plating finish ●Wheels: Nylon Notes: ●There are two mounting holes.
