Hammer Swivel Urethane Wheel (Steel Wheel, Roller Bearing) 125mm 520S-URB125 1 pc

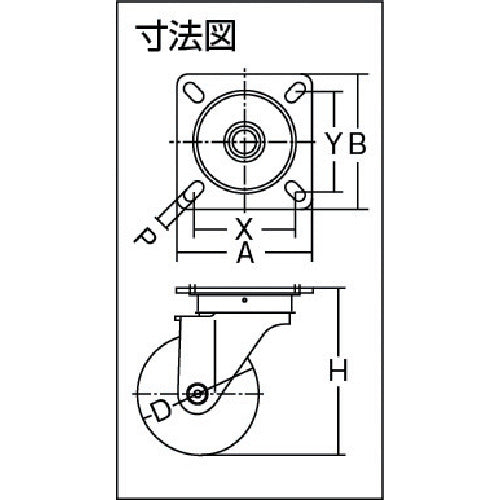

Catalog number: 520S-URB125 Features: ● Casters made by pressing extremely thick materials, and meet the requirements for durability and load-bearing performance. Applications: ● For extra heavy loads. Specifications: ● Wheel diameter D (mm): 125 ● Type: Swivel ● Allowable load (daN): 240 ● Allowable load (kgf): 244.8 ● Wheel width (mm): 44 ● Mounting height H (mm): 171 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 100-112 ● Mounting hole diameter P (mm): 13 ● Plate type ● Roller bearing included ● Swivel Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Steel wheels, thermosetting urethane
