Hammer Swivel Elastomer Wheel (PP Wheel) 100mm 420E-L100 1 pc

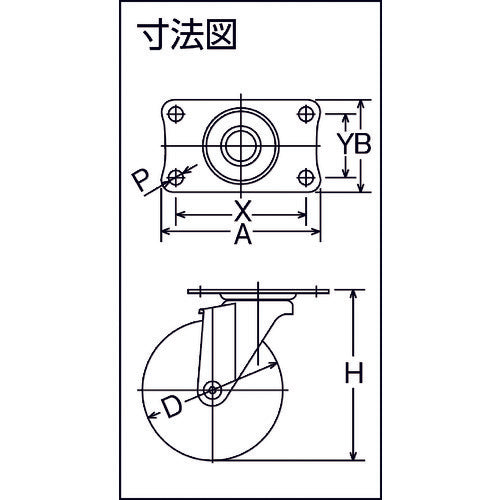

Catalog number: 420E-L100 Features: ●A cost-effective model that uses elastomer material to solve the marking problem. ●Achieves soft and quiet running performance not found in hard wheels. ●Complies with RoHS. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 27 ●Mounting height H (mm): 122 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 82 ●Mounting pitch Y (mm): 40 ●Mounting hole diameter P (mm): 8.8 ●Mounting height (mm): 122 ●Mounting seat (mm): 100 x 58 ●Mounting dimensions (mm): 82 x 40 ●Mounting hole diameter (mm): 8.8 ●Swivel ●Plate type Material/Finish: ●Hardware: Steel ●Hardware surface treatment: Chrome plating finish ●Wheel: Elastomer
