Hammer Swivel Rubber Wheel (Roller Bearing) 200mm with Stopper 419S-RB200 1pc

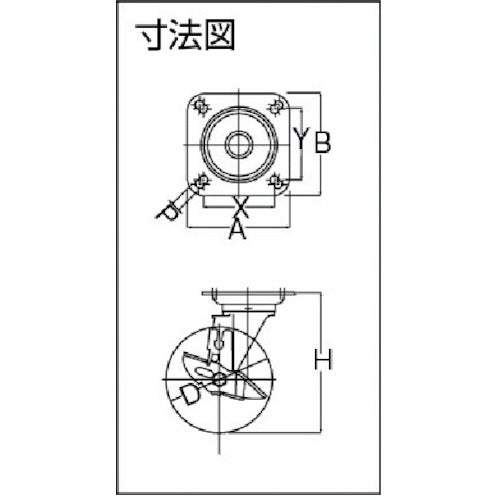

Catalog number: 419S-RB200 Features: ●A high-quality large caster with high resistance to loads and smooth rotation. ●The mounting base is large and is often used for moving machinery and transporting heavy objects. Applications: ●An all-purpose caster for medium to heavy loads. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-wheeling (with stopper) ● Permissible load (daN): 220 ● Permissible load (kgf): 224.4 ● Wheel width (mm): 46 ● Mounting height H (mm): 240 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 100-112 ● Mounting hole diameter P (mm): 13.0 ● Permissible load (N): 2200 ● Plate type ● Free-wheeling (with stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Steel wheels, black rubber
