Hammer, special steel plate, swivel, SP included, rubber B wheel 150mm, 413YS-FR150, 1 piece

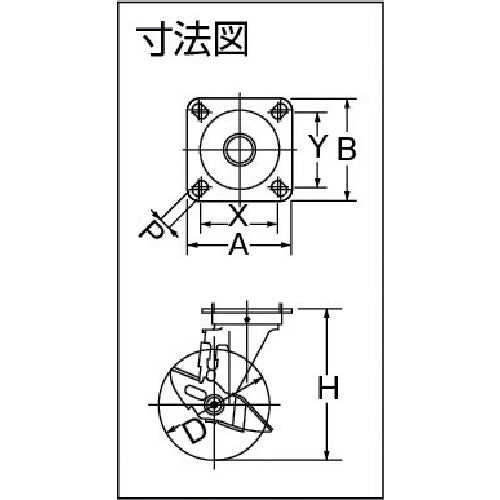

Catalog number: 413YS-FR150 Features: ● Heat treatment of special steel makes it lighter and stronger, which is environmentally friendly. Applications: ● For places where lightness is continuously required. Specifications: ● Wheel diameter D (mm): 150 ● Type: Swivel (with stopper) ● Allowable load (daN): 170 ● Allowable load (kgf): 173.4 ● Wheel width (mm): 38 ● Mounting height H (mm): 190 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Swivel (with stopper) ● Plate type Material/Finish: ● Metal fittings: Special steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Nylon wheels, rubber-wrapped wheels (with radial ball bearings)
