Hammer Heavy-duty fixed rubber wheel (casting wheel, radial ball bearing) 100 mm 500BPR-CR100 1 piece

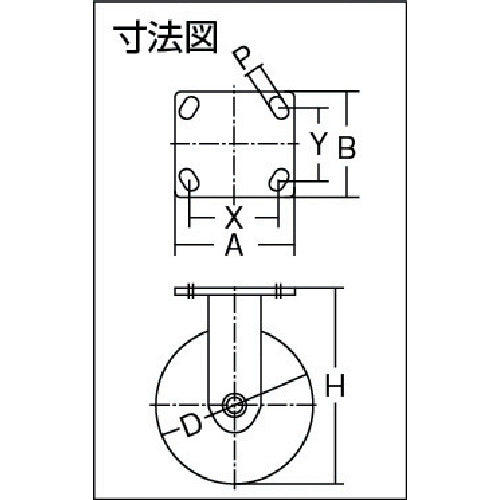

Catalog number: 500BPR-CR100 Features: ●A caster specially designed for heavy loads. Extremely thick material is welded, and the swivel section is hardened. ●The bearing section has a radial ball bearing, which allows the wheels to rotate smoothly. Applications: ●For very heavy loads. Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed type ●Allowable load (daN): 400 ●Allowable load (kgf): 408 ●Wheel width (mm): 50 ●Mounting height H (mm): 142 ●Mounting seat A (mm): 114 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 80-88 ●Mounting pitch Y (mm): 76-64 ●Mounting hole diameter P (mm): 13 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Cast wheels, rubber
