Hammer, silent swivel rubber wheel (nylon wheel, radial ball bearing), 100 mm, with stopper, 413BBS-FR100, 1 piece

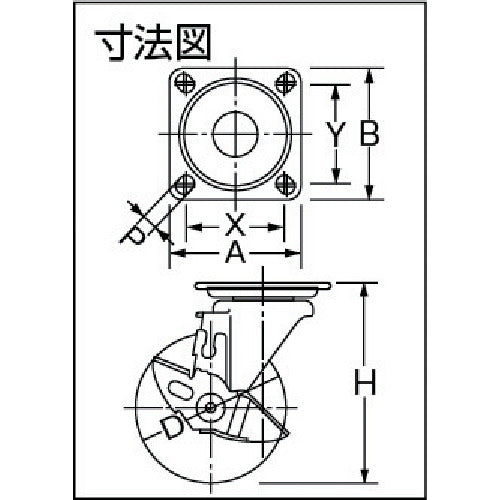

Catalogue number: 413BBS-FR100 Features: ● Reduces noise generated when turning and when the wheels rotate. ● Reduces turning force. Applications: ● For carts that require light weight and quiet operation. Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel type (with stopper) ● Allowable load (daN): 100 ● Allowable load (kgf): 102 ● Wheel width (mm): 30 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 68-71 ● Mounting pitch Y (mm): 68-71 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1000 ● Plate type ● Main body turning part, wheel bearing part: Uses radial ball bearing ● Swivel type (with stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium conversion treatment ● Wheels: Nylon wheel, rubber
