Hammer 520 type swivel SP attached hardened metal fittings special resin wheel 513YS-HBN150 1 piece

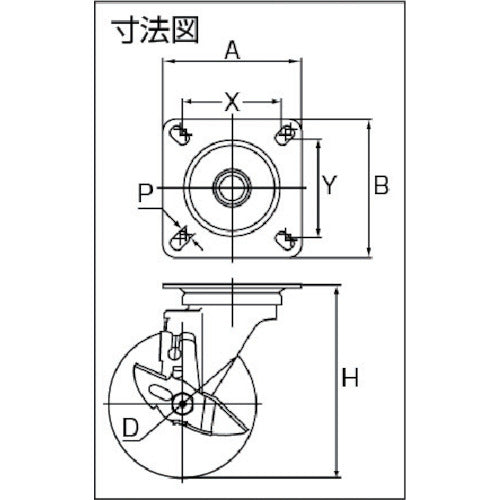

Catalog number: 513YS-HBN150 Features: ●Special resin wheels provide better starting and turning start than rubber wheels, as well as better resistance to oil and chemicals. ●No markings (tire marks) are left when in use. Applications: ●For parts transport carts in automobile factories, etc., and automated guided vehicles (AGVs). Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 250 ● Allowable load (kgf): 255 ● Wheel width (mm): 50 ● Mounting height H (mm): 196 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 100-112 ● Mounting hole diameter P (mm): 13 ● Free-wheeling (with stopper) ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Special resin wheels
