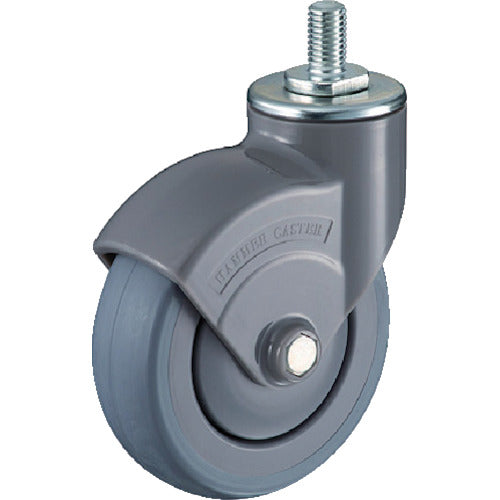

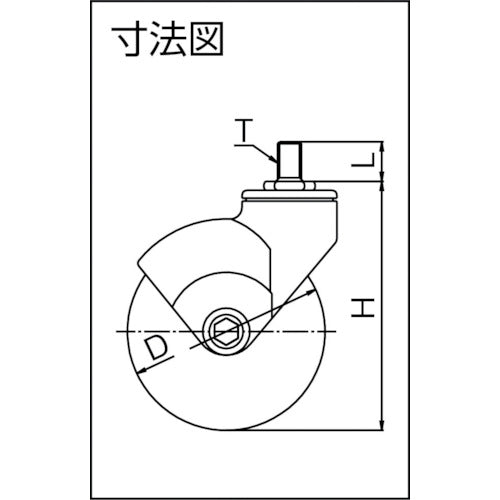

Catalog number: 740MA-FR100 Features: ●Radial ball bearings are used for the swivel and wheel bearings, and the main body is made of resin, making it lightweight and quiet. Applications: ●From shopping carts to trolleys. Specifications: ●Wheel diameter D (mm): 100 ●Type: Free-wheeling ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 30 ●Mounting height H (mm): 126 ●Axle length L (mm): 20 ●Thread T: M12 ●Thread pitch (mm): 1.75 ●Screw-in type ●Free-wheeling Materials/Finish: ●Main body: Resin ●Threaded part: Trivalent chromium chemical treatment ●Wheels: PP wheels, rubber-wrapped wheels (with radial ball bearings)
