Hammer EA series All stainless steel Swivel urethane wheel 100mm (nylon wheel) with stopper 315EA-UR100 1 piece

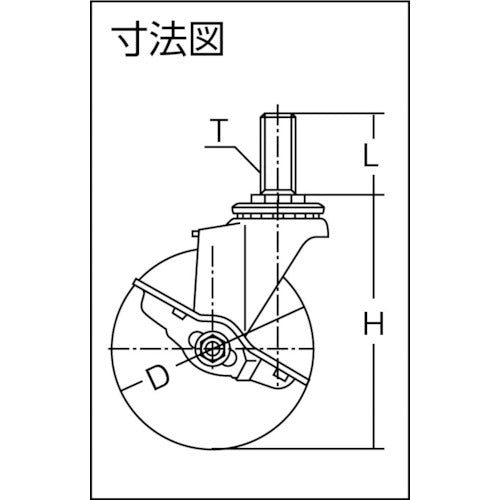

Catalogue number: 315EA-UR100 Features: ● Made of all stainless steel with excellent corrosion resistance and water resistance. Applications: ● Widely used in areas around water, food, and the marine industry. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 27 ● Mounting height H (mm): 126 ● Shaft length L (mm): 40 ● Thread T: M16 ● Thread pitch (mm): 2.0 ● Screw-in type ● Free-wheeling (with stopper) Materials/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, thermoplastic urethane (with resin bushing)
