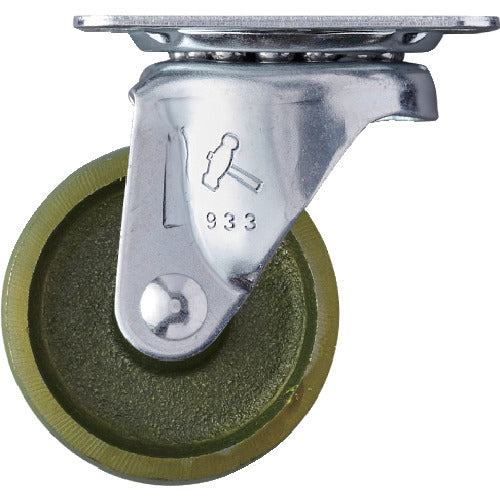

Hammer G series swivel caster 50mm 420G-C50 1 piece

Catalogue number: 420G-C50 Features: ●The most widely produced and used in a variety of locations. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel ●Allowable load (daN): 40 ●Allowable load (kgf): 40.8 ●Wheel width (mm): 21 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 59 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 46 ●Mounting pitch Y (mm): 35 ●Mounting hole diameter P (mm): 6.5 ●Mounting hole diameter (mm): 6.5 ●Mounting height (mm): 65 ●Mounting seat (mm): 59 x 47 ●Mounting dimensions (mm): 46 x 35 ●Plate type Material/Finish: ●Body: Steel ●Surface treatment: Trivalent chromate chemical treatment ●Wheels: Cast iron
