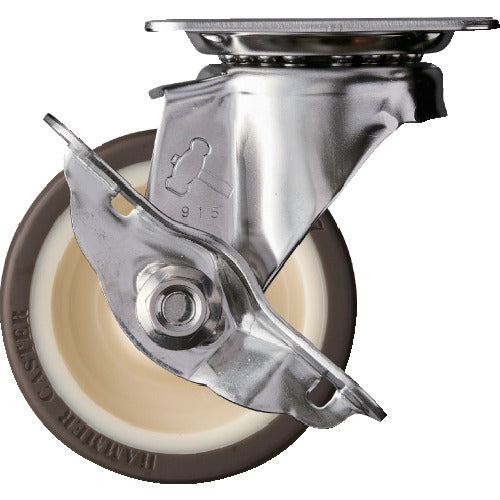

Hammer S series All stainless steel Swivel SP with urethane B wheel 75mm 315S-UB75 1 piece

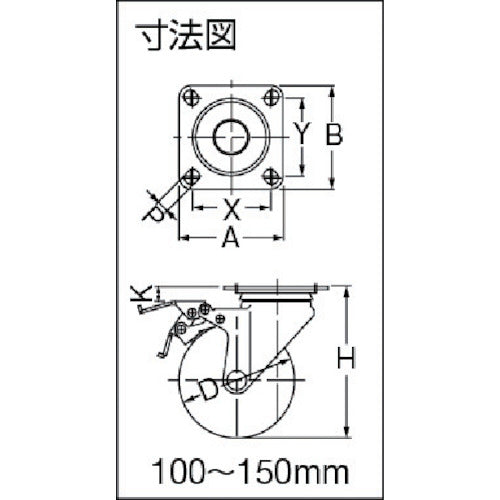

Catalog number: 315S-UB75 Features: ● Made entirely of stainless steel with excellent corrosion and water resistance. ● RoHS compliant. Applications: ● Widely used in areas around water, food, and fisheries. Specifications: ●Wheel diameter D (mm): 75 ●Type: Free-swivel type (with stopper) ●Permissible load (daN): 80 ●Permissible load (kgf): 81.6 ●Wheel width (mm): 27 ●Mounting height H (mm): 93 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Permissible load (N): 800 ●Plate type ●Swivel type (with stopper) Material/Finish: ●Metal fittings: Stainless steel (SUS304) ●Wheels: Nylon wheel, thermoplastic urethane Note: ●315S-UB50, 65, 75 are side stopper types, 315S-UB100, 125, 150 are front stoppers.
