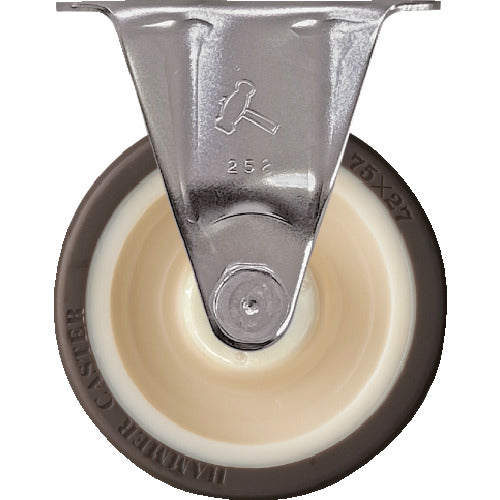

Hammer S-type All stainless steel Fixed urethane B wheel 75mm 320SR-UB75 1 piece

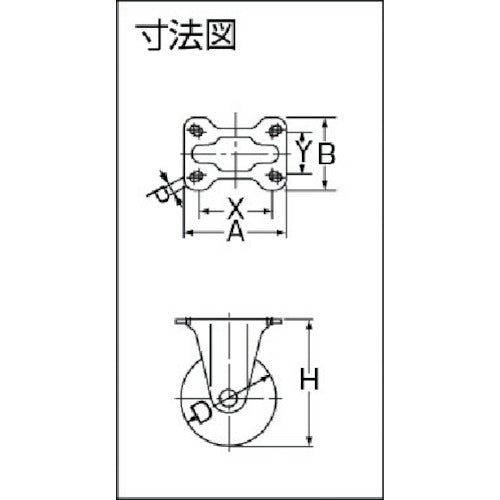

Catalogue number: 320SR-UB75 Features: ● Made of all stainless steel with excellent corrosion resistance and water resistance. ● RoHS compliant. Applications: ● Widely used in areas around water, food, and fisheries. Specifications: ● Wheel diameter D (mm): 75 ● Type: Fixed type ● Allowable load (daN): 80 ● Allowable load (kgf): 81.6 ● Wheel width (mm): 27 ● Mounting height H (mm): 93 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 47 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 800 ● Plate type ● Fixed type Materials/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, thermoplastic urethane
