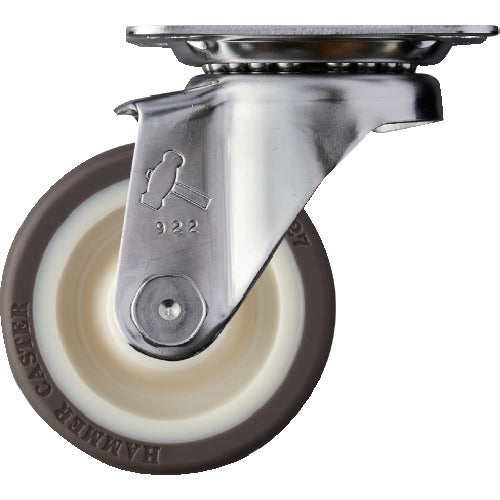

Hammer S-type All stainless steel Swivel urethane B wheel 65mm 320S-UB65 1 piece

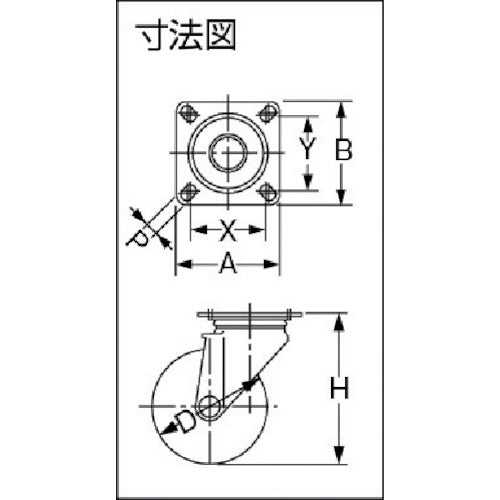

Catalogue number: 320S-UB65 Features: ● Made of all stainless steel with excellent corrosion and water resistance. ● RoHS compliant. Applications: ● Widely used in areas around water, food and fisheries. Specifications: ● Wheel diameter D (mm): 65 ● Type: Swivel ● Allowable load (daN): 70 ● Allowable load (kgf): 71.4 ● Wheel width (mm): 27 ● Mounting height H (mm): 85 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 700 ● Plate type ● Swivel Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, thermoplastic urethane
