VIKING ARM社

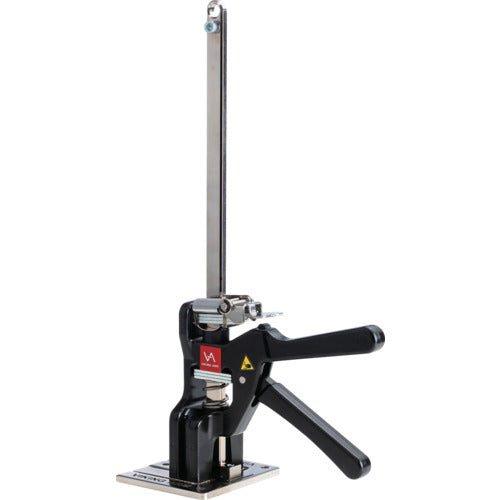

Viking Arm Mechanical Jack "Viking Arm" Retail Pack (individually wrapped, 1 piece) VA0091 1 piece
Viking Arm Mechanical Jack "Viking Arm" Retail Pack (individually wrapped, 1 piece) VA0091 1 piece
Regular price
¥32,405
Regular price
Sale price
¥32,405
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

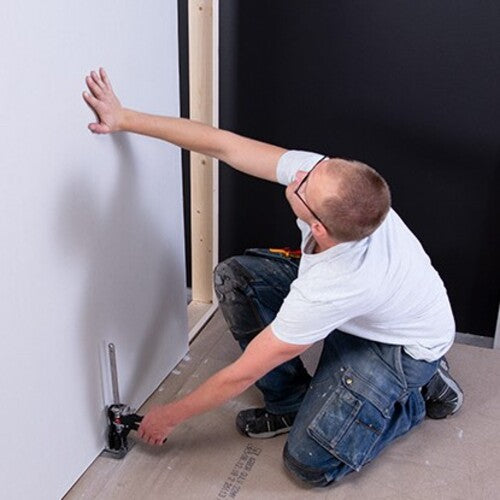

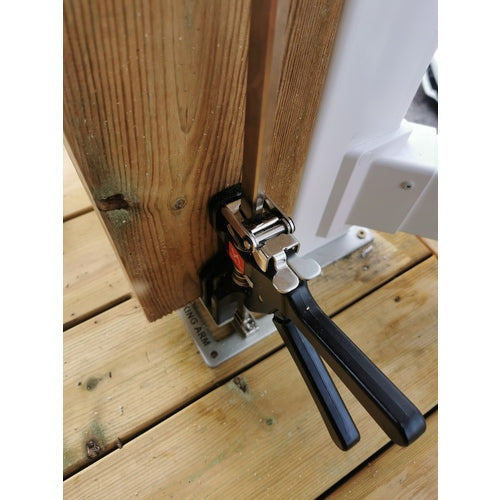

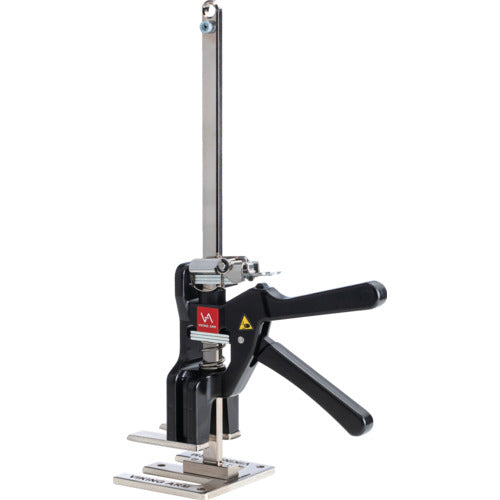

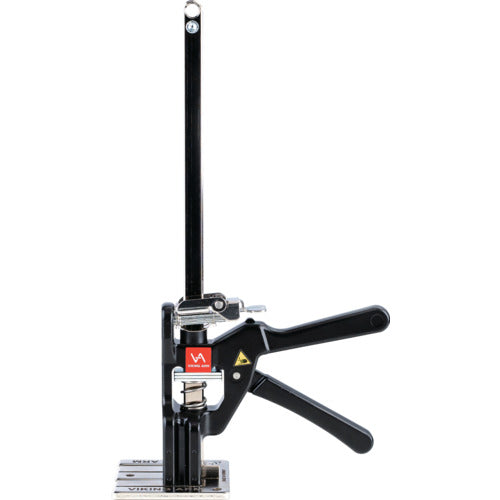

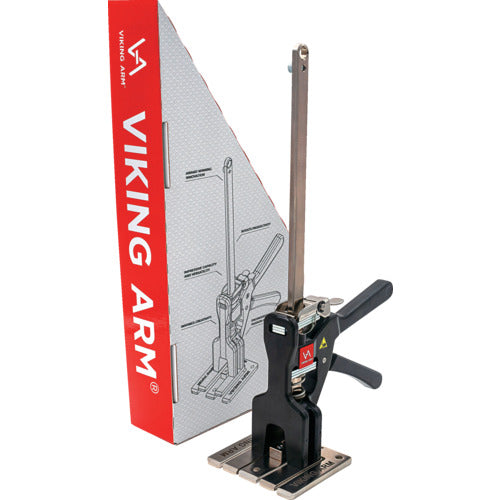

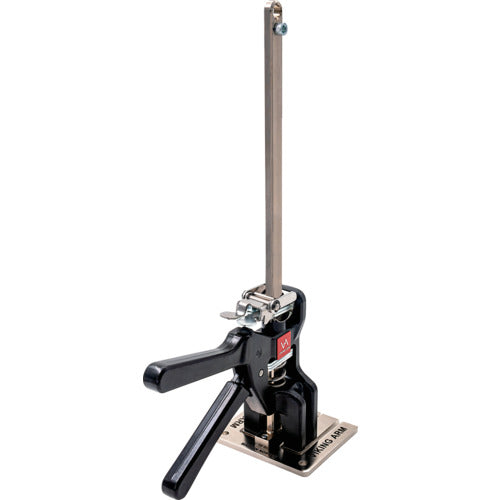

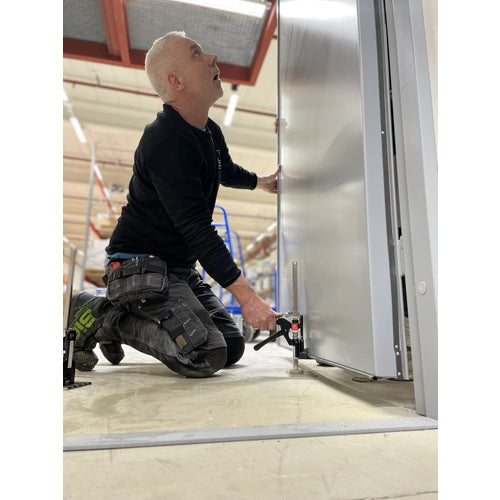

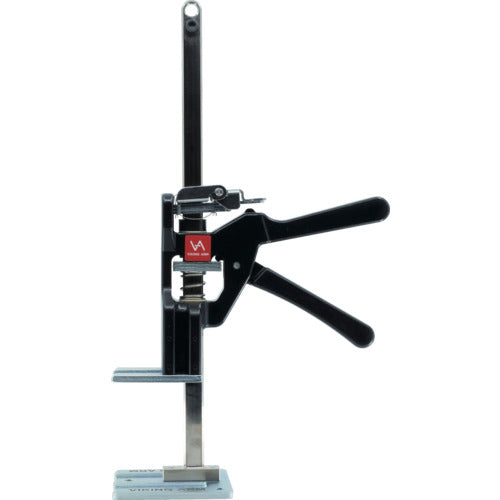

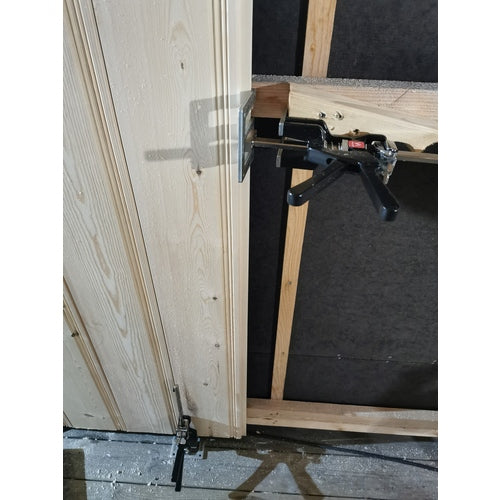

Catalog number: VA0091 Features: ●With its patented unique structure, it can lift heavy objects up to 150 kg up to a maximum of 215 mm without power. ●It can also be used as a clamp by turning the handle upside down. ●It is ideal for level adjustment work as it can be fine-tuned in 1 mm increments. ●When unloaded, it can be raised and lowered to any height in one go. ●It is lightweight with a weight of 1.42 kg and easy to carry. ●The claws are 6 mm thick, so they can enter even with small clearances. (Optional claws are 3 mm thick) ●It has excellent functionality and can be expanded by using optional items. ●The only maintenance required is a little oiling and cleaning, so it can be used for a long time. ●It is a high-quality tool made in Norway. Specifications: ●Lifting force kN (t): 1.5 (0.15) ●Stroke (mm): 209 ●Width (mm): 104 ●Depth (mm): 219 ●Height (mm): 383 ●Claw width (mm): Lifting plate: 63 / Base plate: 104 ●Claw length (mm): 38 ●Minimum height (mm): 6 ●Body height (mm): 383 ●Handle length (mm): 110 ●Stroke (mm): 6-215 in jack-up mode / Clamp mode: 385-155 ●Individually packaged in a gift box Material / Finish: ●Shaft, plate: Nickel-plated hardened carbon steel ●Handle: Aluminum (EPD coating) ●Lock & release mechanism: Hardened stainless steel
