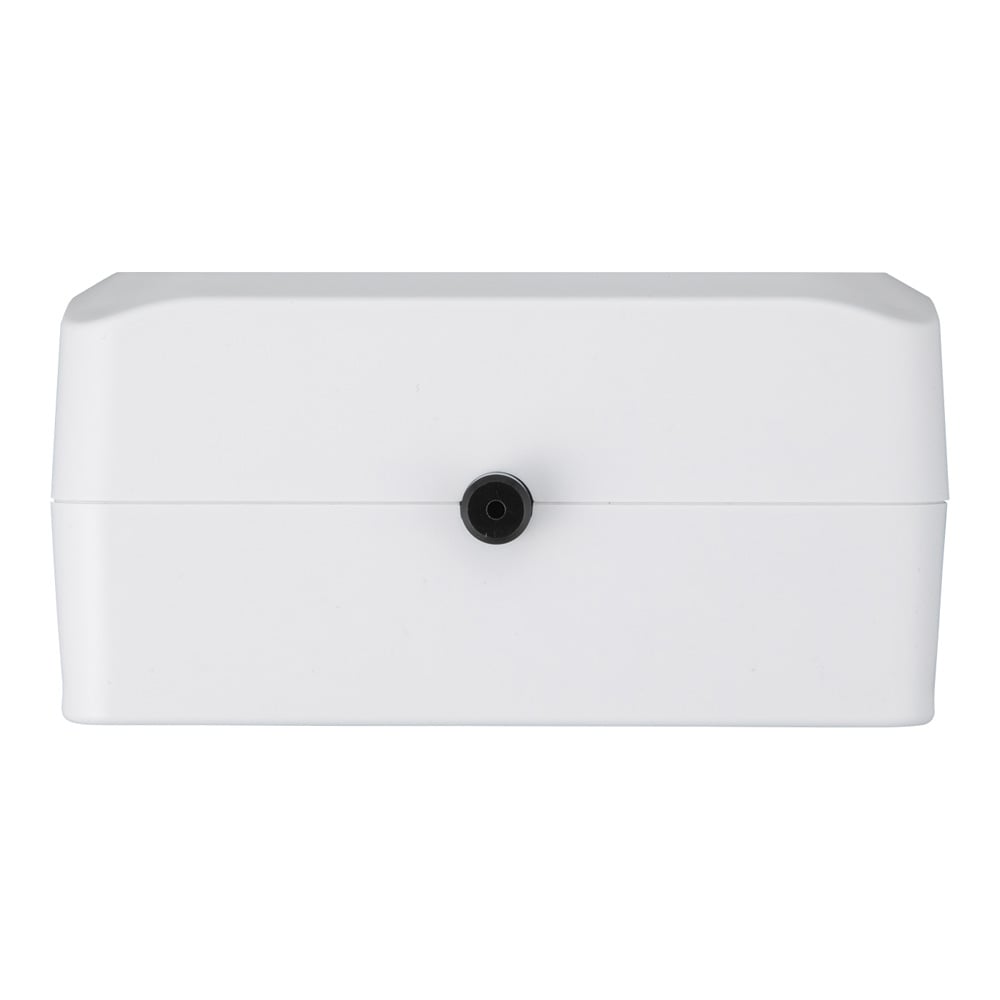

Particle monitor (upgrade type) PA05UG 1 piece

Economy type that allows multi-point measurement and constant monitoring 4-level LED display By using the evaluation software, it is possible to monitor and record particle counts, temperature and humidity in real time. You can choose between analog output or digital communication. It has an alarm output so it can be connected to an alarm device. Suitable for use as alarms in clean booths and clean benches. The compact design allows for space-saving installation. Continuous monitoring is possible in areas with air cleanliness class 1000. The number of particles 0.5 μm or larger (main) and 5 μm or larger (sub) can be output from a single monitor. It can be powered by a mobile battery, so you can monitor even in places where there is no power source. Data can be saved even in standalone mode (measurement interval 1 min/84 h). The optional temperature and humidity sensor N (4-3762-11) can be connected and recorded using the dedicated software. Detectable particle size (μm): Main 0.5 or more / Sub 5 or more Size (mm): 135 x 105 x 69.1 Measurement range: Class 1,000 to 100,000 Output units: pcs/m3, pcs/cf, pcs/L Light source: Laser diode Measurement method: light scattering method Sampling method: Suction by fan Temperature and humidity measurement function: Yes Reference display: Yes (default: 5um or more *3) Sensor output value: 60 seconds total value Data update time: 1 second Output/Communication Method: Alarm output, digital communication (Ethernet, Wi-Fi, RS485), analog output Power supply voltage: AC adapter (5V±5%), terminal block (24V±10%) Weight: Approx. 510g Accessories: AC adapter USB Type-C (+5V) *3 Changes can be made using the evaluation software.
