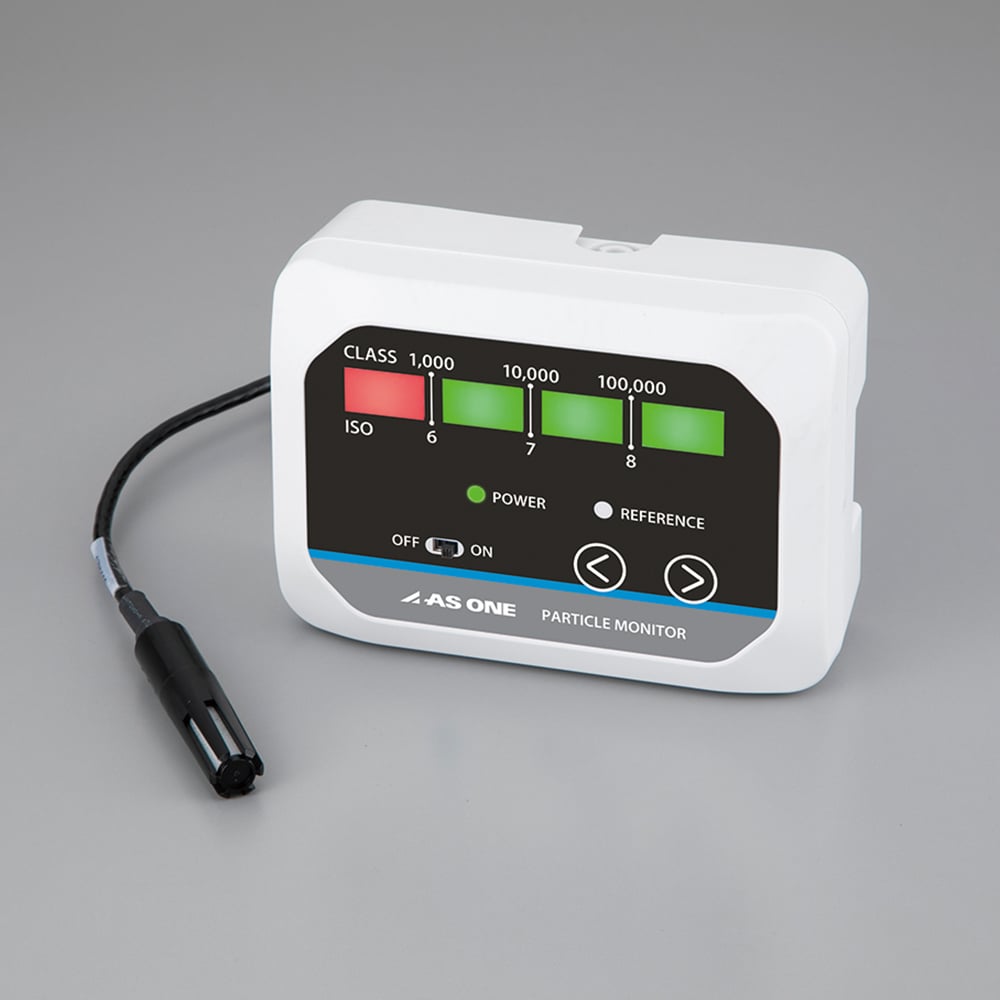

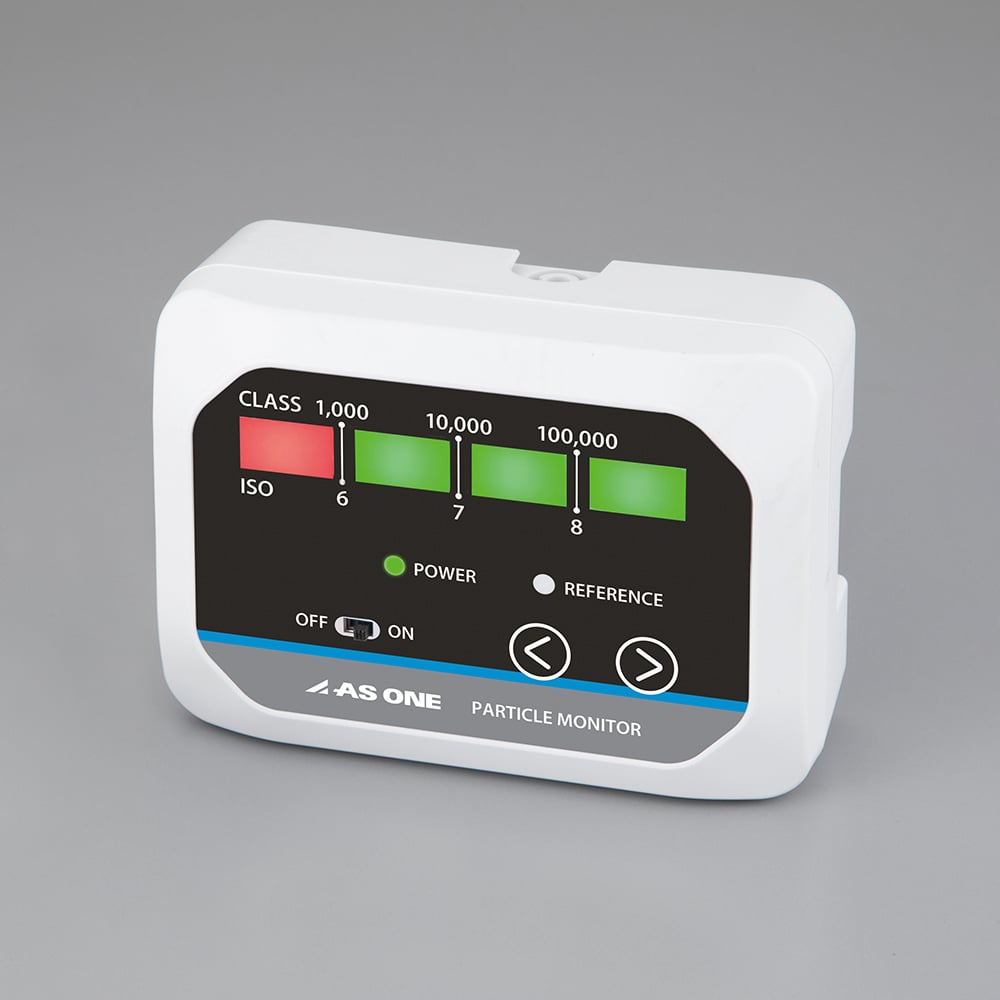

Particle monitor PA03H 1 piece

Economy type that allows multi-point measurement and constant monitoring It is possible to visualize air cleanliness management in factories, precision parts manufacturing processes, and work environments where cleanliness is required. Cleanliness class is displayed in four levels from 1,000 to 100,000 using LEDs. Using the evaluation software makes it possible to monitor and record the number of particles. The optional temperature and humidity sensor (4-3762-11) can be connected and monitoring and recording are possible using the evaluation software. Very compact and easy to install. Detectable particle size: 0.3 μm or more Size (mm): 120 x 46.5 x 87 Measurement method: light scattering method Light source: Laser diode Sampling method: Fan suction Measurement range: Class 1,000 to 100,000 *Class 1,000 is a reference value Output units: pcs/m3 (default), pcs/cf, pcs/L Sensor output value: 60s total value Data update time: 1s Power supply voltage: 12V to 24V Weight: Approx. 0.21kg Temperature and humidity measurement function: Yes (※The values ​​will be displayed by using the evaluation software.) Reference display: 〇 (several um or more) Analog output: × Digital communication: Yes (Ethernet, Wi-Fi) Alarm output: Yes Accessories: AC adapter Click here to download the dedicated application (v81_1_0) For information on MAC/IP display mode, please click here
