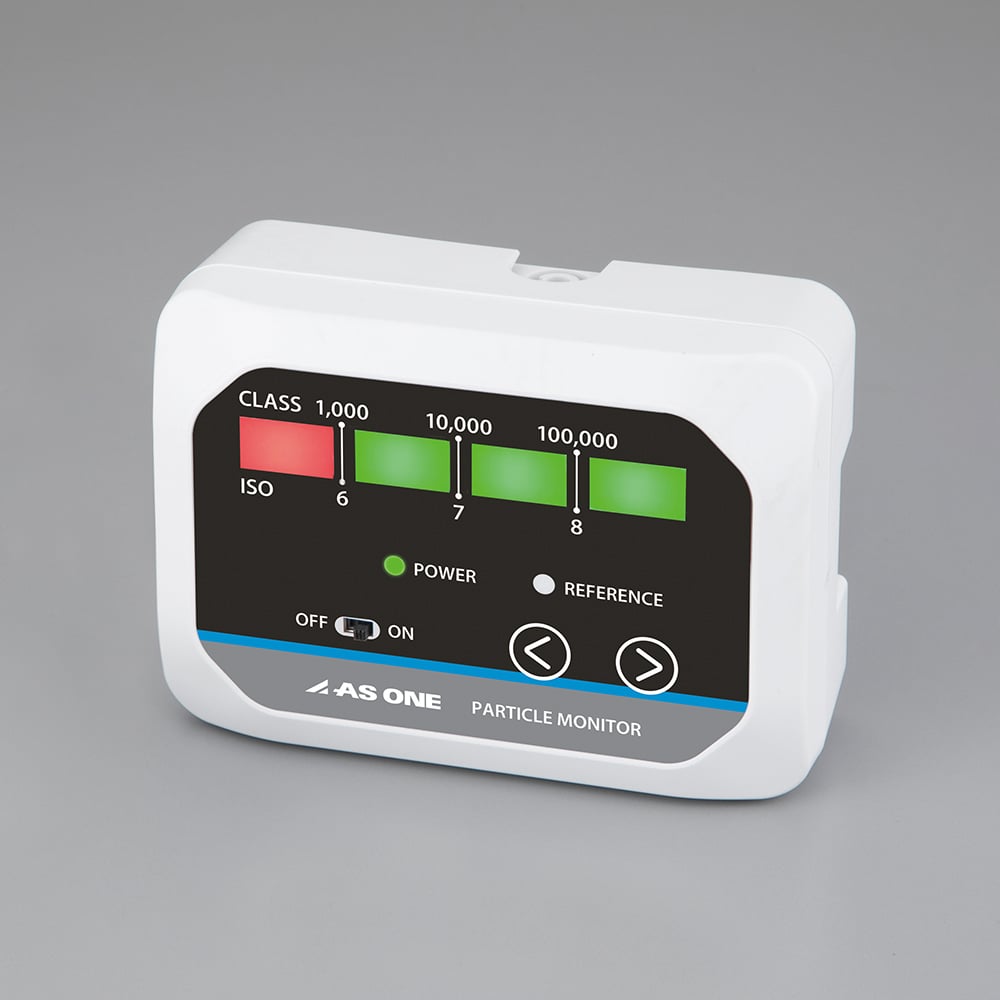

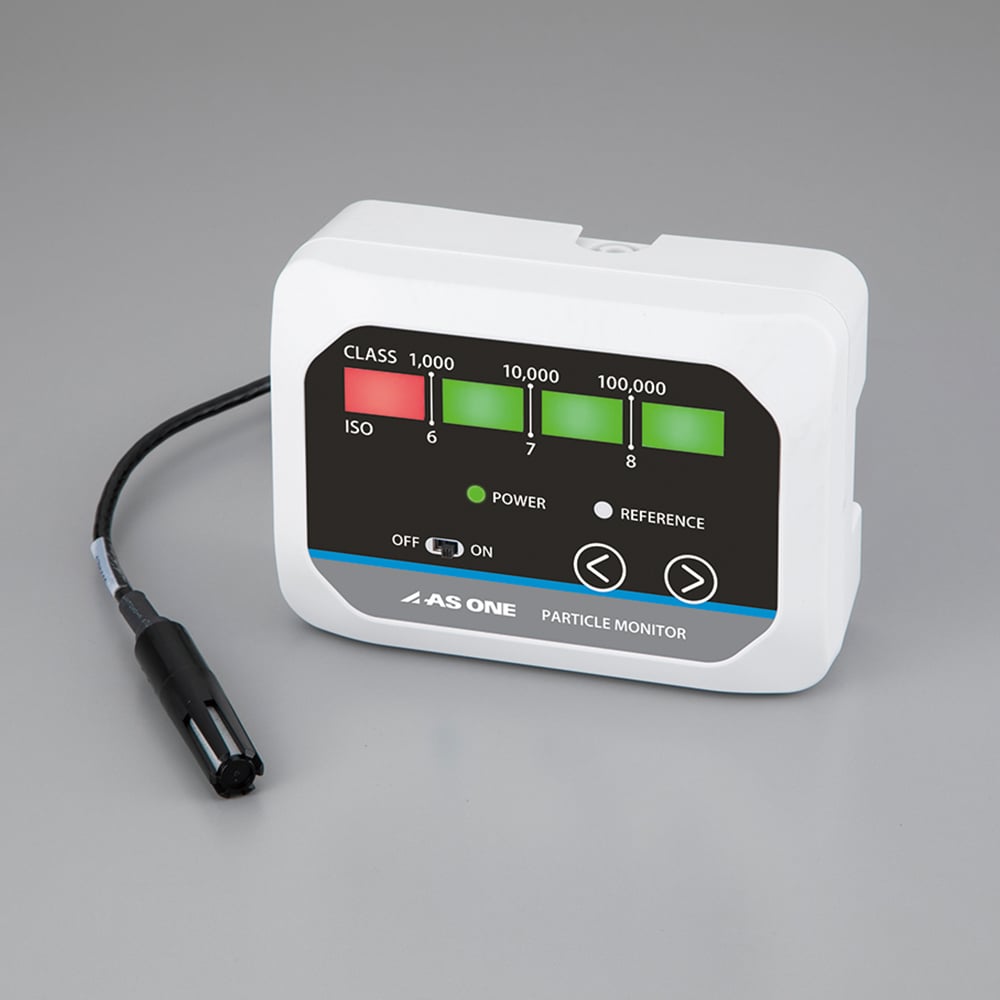

Particle monitor PA03L 1 piece
Particle monitor PA03L 1 piece
Regular price
¥97,350
Regular price
Sale price
¥97,350
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Economy type that allows multi-point measurement and constant monitoring
This monitor can measure particles suspended in the air.
It is possible to visualize air cleanliness management in factories, precision parts manufacturing processes, and work environments where cleanliness is required.
Cleanliness class is displayed in four levels from 1,000 to 100,000 using LEDs.
It contributes to visualizing the level of contamination in environments that require contamination control, such as clean rooms and manufacturing processes.
Very compact and easy to install. Detectable particle size: 0.3 μm or more
Size (mm): 120 x 46.5 x 87
Measurement method: light scattering method
Light source: Laser diode
Sampling method: Fan suction
Measurement range: Class 1,000 to 100,000 *Class 1,000 is a reference value
Output units: pcs/m3 (default), pcs/cf, pcs/L
Sensor output value: 60s total value
Data update time: 1s
Power supply voltage: 12V to 24V
Weight: Approx. 0.21kg
Temperature and humidity measurement function: ×
Reference display: 〇 (several um or more)
Analog output: Yes
Digital communication: ×
Alarm output: Yes
Accessories: AC adapter
