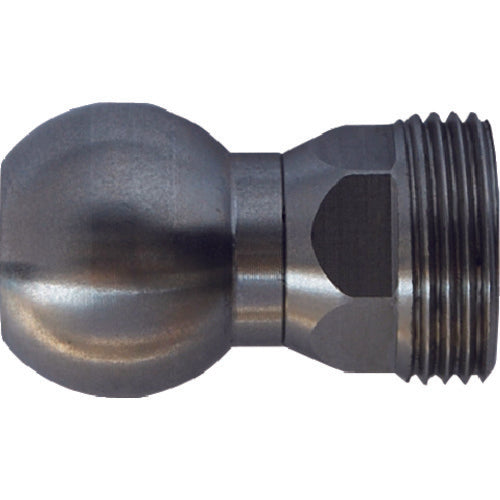

Hiltline Stainless Steel Coolant Hose (1/4 Hose System) Ball Connector (for Okuma) 1AD-K15 1 pc

Catalog number: 1AD-K15 Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength means the hose shape will not change due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● Cooling of tool tips during cutting and grinding ● Can also be used with air. ：1/4●Usable temperature: -30℃ to +100℃●Maximum operating pressure (liquid): 5Mpa●Maximum operating flow rate: ~60l/min Material/Finish: ●SUS303 Note: ●The maximum operating pressure and maximum operating flow rate data are for when a hose inner diameter of φ5.8 is used for the 1/4 system and a round nozzle tip diameter of φ6.5 is used for the 1/2 system. ●The chemical resistance of applicable fluids indicates the chemical resistance of the product material itself and does not guarantee the chemical resistance of this product.
