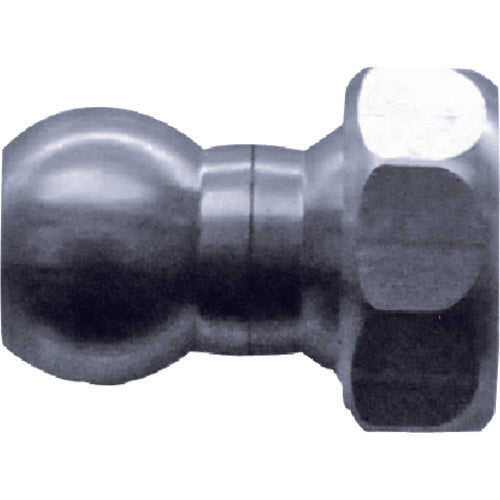

Hiltline Stainless Steel Coolant Hose (1/4 Hose System) Ball Connector (for LL) 1AD-LL 1 pc

Catalog number: 1AD-LL Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength means the hose shape will not change due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● Cooling of tool tips during cutting and grinding ● Can also be used with air. Specifications: ●Maximum liquid pressure (kg/cm2): 5Mpa ●Total length (mm): 24 ●Application: For LL ●Remarks: For LL ●Product name: Ball connector (for LL) ●Compatible fluids: Acetone, aqueous ammonia, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene ●Flow rate (L/min): 60 ●Inner diameter (mm): 1/4 ●Nominal size: 1/4 ●Length (mm): 23.7 ●Maximum operating pressure (MPa): 5 ●Usable temperature: -30°C to +100°C ●Maximum operating pressure (liquid) 5Mpa ●Maximum operating flow rate ~60l/min Material/Finish: ●SUS303 Note: ●The data for the maximum operating pressure and maximum operating flow rate is based on the use of a hose inner diameter of φ5.8 for the 1/4 system and a round nozzle tip diameter of φ6.5 for the 1/2 system. ●The chemical resistance of compatible fluids indicates the chemical resistance of the product material itself and does not guarantee the chemical resistance of this product.
