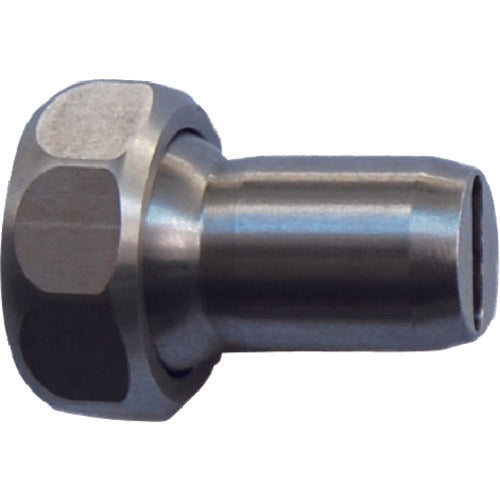

Hiltline Stainless Steel Coolant Hose (1/4 Hose System) Round Nozzle Slit Hole Width 7.0 x Thickness 2.0 x Number of Holes 1 (Adjusting Nut Included) 1DU-72 1 pc

Catalog number: 1DU-72 Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength means the hose shape will not change due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● For cooling tool tips during cutting and grinding processes. ● Can also be used with air. Specifications: ● Number of nozzles: 1 ● Nozzle length (mm): 22 ● Maximum operating pressure of liquid (kg/cm2): 5Mpa ● Total length (mm): 22 ● Number of holes: 1 slit ● Material: SUS303 ● Length (mm): 22 ● Nominal size: 1/4 ● Product name: Round nozzle, slit hole width 7.0 x thickness 2.0 (with adjustment nut) ● Suitable fluids: acetone, ammonia water, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene ● Nozzle inner diameter (mm): 7 x 2.0 slit ● Inner diameter (mm): 1/4 ● Maximum operating pressure (MPa): 5 ● Number of holes (pcs): 1 slit ● Flow rate (L/min): 60 ● Usable temperature: -30°C to +100°C Material/Finish: ● SUS303 Set contents/Accessories: ● Adjustment nut 1/4 Note: ●The data for maximum operating pressure and maximum operating flow rate is based on the case where a hose with an inner diameter of φ5.8 is used for the 1/4 system and a round nozzle with a tip diameter of φ6.5 is used for the 1/2 system. ●The chemical resistance of the applicable fluid indicates the chemical resistance of the product material itself and does not guarantee the chemical resistance of this product.
