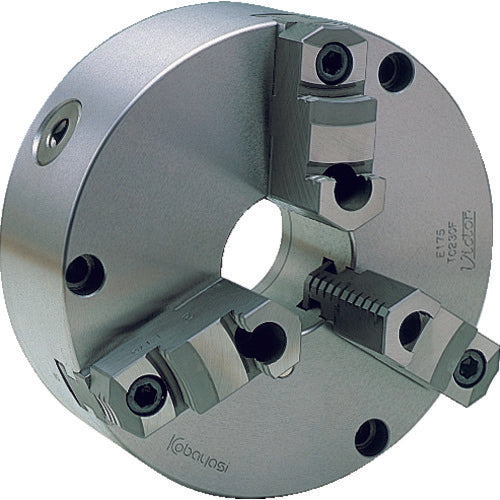

Victor Scroll Chuck TC110F 4 inch 3 jaws split jaw TC110F 1 unit

Catalog number: TC110F Features: ● Can be used with both hard and soft jaws, making it versatile and highly accurate. ● Can be easily attached to lathes and indexing tables by front mounting. Applications: ● Mainly for lathe machining. Specifications: ● Chuck outer diameter (mm): 112 ● Gripping force (kN): 17 ● External diameter gripping (mm): 2-89 (108) ● Internal diameter gripping (mm): 36-78 (97) ● Jaw shape: Split jaw (lower jaw, hard jaw, soft jaw) ● Split jaw type (with hard jaw and soft jaw) ● Split jaw (for both inside and outside) ● Straight in-low ● Front mounting Material/Finish: ● Body: Cast iron (FC300) ● Hard jaw: SCM415 ● Soft jaw: S45C Set contents/Accessories: ● 1 operating handle ● Mounting bolt: 3 M8 x 60 ● Wrench: 1 5mm, 1 6mm ● Soft jaw: 1 set
