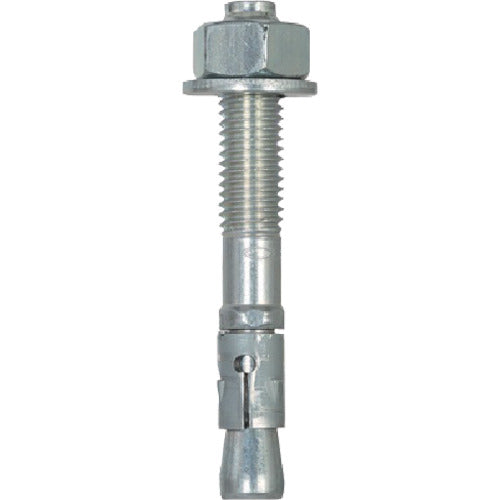

Fischer Bolt Anchor FBN2 12/10 (20 pieces) 40950 1 box

Catalogue number: 40950 Features: ● Wedge anchor for normal concrete with excellent cost performance. ● Shallow embedment allows shallow drill hole depth, reduces interference with reinforcing bars and enables quick construction. ● International certification demonstrates maximum safety and best performance. Applications: ● For concrete and dense stone. ● Installation of various mounting frames. ● Facility construction. ● Handrail exterior construction, etc. Specifications: ●Screw designation: M12 ●Screw length (mm): 59 ●Total length (mm): 106 ●Maximum attachment thickness (mm): 10 ●Drill diameter (mm): 12 ●Standard installation torque (N・m): 50 ●Maximum tensile load (kN): 35.7 ●Maximum shear load (kN): 25.0 ●Effective embedment depth (mm): 65 ●Embedded depth (mm): 95 ●Pre-drilled hole diameter (mm): 12 ●European Technical Approval (ETA-07/0211) ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
