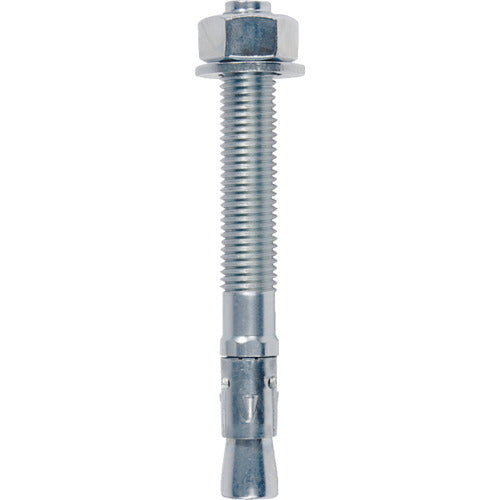

Fischer Bolt Anchor FBN2 16/200 (10 pieces) 45570 1 box

Catalogue number: 45570 Features: ● Wedge anchor for normal concrete with excellent cost performance. ● Shallow embedment allows shallow drill hole depth, reduces interference with reinforcing bars and enables quick construction. ● International certification demonstrates maximum safety and best performance. Applications: ● For concrete and dense stone. ● Installation of various mounting frames. ● Facility construction. ● Handrail exterior construction, etc. Specifications: ●Screw designation: M16 ●Screw length (mm): 100 ●Total length (mm): 320 ●Maximum attachment thickness (mm): 200 ●Drill diameter (mm): 16 ●Standard installation torque (N・m): 100 ●Maximum tensile load (kN): 47.0 ●Maximum shear load (kN): 47.0 ●Effective embedment depth (mm): 80 ●Embedded depth (mm): 304 ●Pre-drilled hole diameter (mm): 16 ●European Technical Approval (ETA-07/0211) ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
