CKD

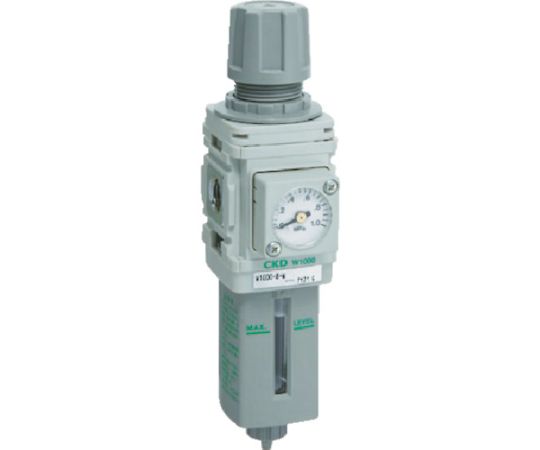

Filter regulator W1000-8-W 1 piece
Filter regulator W1000-8-W 1 piece
Regular price
¥6,875
Regular price
Sale price
¥6,875
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The air filter and regulator are integrated into a compact unit.
Removes drain dust from the air and adjusts pressure.
The element used has a unique chemical fiber structure that is rough on the surface and gets finer toward the inside. This significantly reduces clogging and increases the element's lifespan.
Removes drain dust from the air and adjusts pressure. Filtration accuracy (μm): 5
Operating pressure (MPa): 1
Processing air flow rate (m3/min): 1.15
Set pressure (MPa): 0.05 to 0.85
Connection size: Rc1/4
Total length (mm): 166.5
Overall width (mm): 40
Fluid used: Air
Fluid used: Air
Fluid temperature: 5 to 60°C
Drain discharge method: Manual
With pressure gauge
Country of Origin: China
Code number: 355-9572
