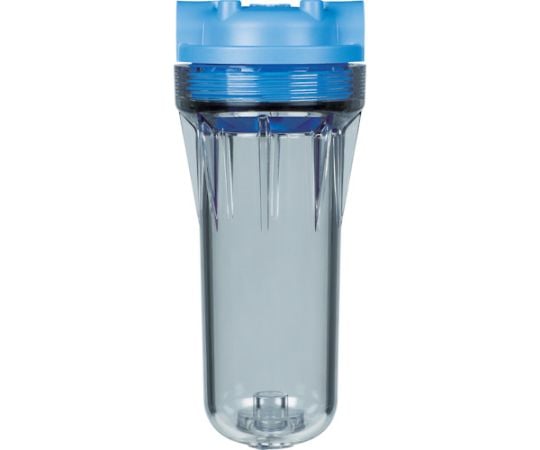

Filter housing " " Transparent 250mm 1 piece O-ring: EPDM NFH-A-10-E 1 unit

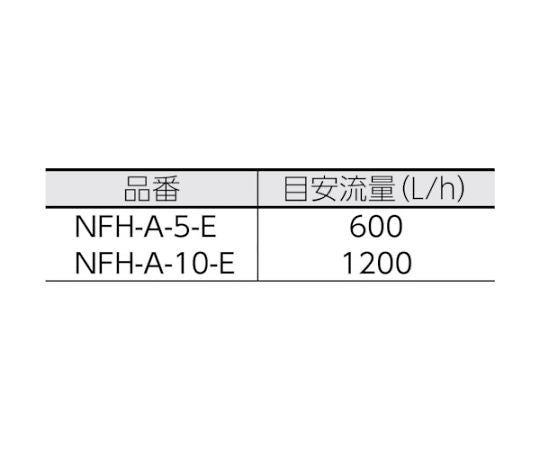

This is a transparent type that allows you to check the filtration status. Filtration of industrial water and well water. Filtration of iron rust and turbidity. Filtration of cleaning water. Outer diameter (mm): 136 - Height (mm): 319 Connection size: Rc3/4 - Width (mm): 136 - Depth (mm): 136 Fitting Spacing (mm): 132 Estimated flow rate (L/h): 1200 Pressure resistance (MPa): 0.5 Piping connection size: Rc3/4 Filtration flow rate (L/min): 20 Compatible filters: CW, EC, CCWN, FSG, FHG, YCC, FCC, SCM Set pressure: 0.5MPa Design temperature: 55℃ Material/Finish: Body/Synthetic resin, O-ring/EPDM, Head/Polypropylene Do not use in structures (applications) involving sudden pressure increases or decreases. Do not use outdoors or in environments where deterioration due to ultraviolet rays or damage from freezing may occur. Using a neutral detergent or solvent to wipe or clean the product may result in cracks or damage. Be sure to wipe or wash with water. Filter cartridges from other manufacturers may not be able to be installed. Country of Origin: Japan Code number: 418-7563
